Sandvik Coromant 5740092-XCP10 Turning Insert: RCGX08 03 M0-AL H10, Solid Carbide - pack of 10

Item #: 5740092-XCP10 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$181.12

/package
SAVE UP TO 18.11
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

4

Insert Thickness

3.17

Insert Material

Carbide

Series

CoroTurn 107

Coating/Finish

Bright/Uncoated

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.1250

Insert Thickness (Decimal Inch)

0.1250

Insert Thickness (Inch)

1/8

Secondary Workpiece Material

Superalloy

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3150

Insert Length (mm)

3.18

Insert Shape

Round

Clearance Code

C

Insert Shape Code

R

Chip Breaker

AL

Secondary Workpiece Material Code

S

Insert Style

RCGX

Insert Size Code

0803

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1339

Relief Angle

7

Hole Diameter (Mm) ( - 0 Decimals)

3.40

Insert Length (Inch)

1/8

Manufacturer Grade

H10

Length Range (Decimal Inch)

0.0000 - 0.3000

Inscribed Circle (mm)

8.00

Iso Code

RCGX 08 03 M0-AL H10

Product Overview

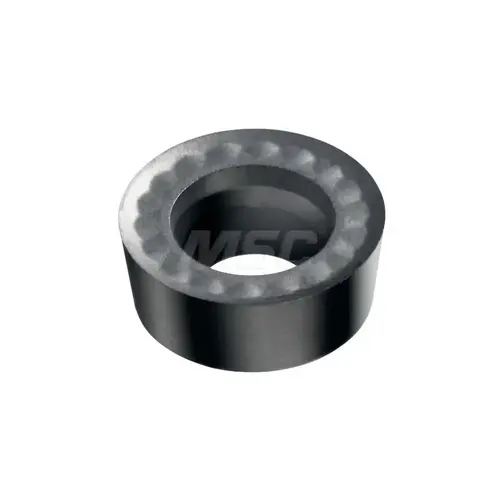

Turning Insert: RCGX08 03 M0-AL H10, Solid Carbide Uncoated, Neutral, 1/8" Long, 8 mm Inscribed Circle, Series CoroTurn 107
