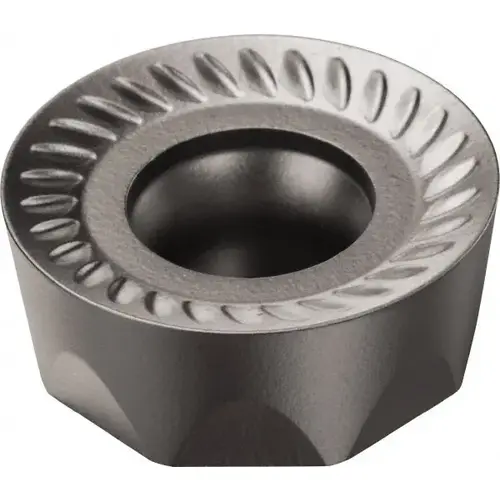

Milling Insert: H10F, Solid Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 5740406 Milling Insert: H10F, Solid Carbide Bright/Uncoated

Item #: 5740406 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$21.04

/each
SAVE UP TO 2.10
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 76 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Rounded

Material Application

Non-Ferrous Metal

ANSI Code

RCKT 13 04 00-WM H10F

Number of Cutting Edges

8

Standards

ANSI

Thickness (mm)

4.76

Insert Material

Solid Carbide

Series

RCKT

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.2500

Length (Decimal Inch - 4 Decimals)

0.5000

Length (Inch)

1/2

Manufacturers Catalog Number

RCKT 13 04 00-WM H10F

Material Grade

N15

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

Thickness (Decimal Inch - 4 Decimals)

0.1875

Thickness (Inch)

3/16

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

Uncoated

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.0732

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/4

Insert Shape

Round

Chip Breaker

WM

Insert Style

RCKT

Insert Size Code

130400

Hole Diameter (Decimal Inch)

0.1575

Relief Angle

7.00

Included Angle Degree

360

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

0.16

Maximum Depth of Cut (mm)

1.86

Manufacturer Grade

H10F

Inscribed Circle Range (Decimal Inch)

0.5000 to 0.5100

Single or Double Sided Insert

Single

Cutter Series Compatibility

N331.32

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Inscribed Circle (mm)

12.70

Convex Radius (Decimal Inch)

0.2500

Corner Radius (mm)

6.35

Iso Code

RCKT 13 04 00-WM H10F

Product Overview
Milling Insert: H10F, Solid Carbide Uncoated, 3/16" Thick
