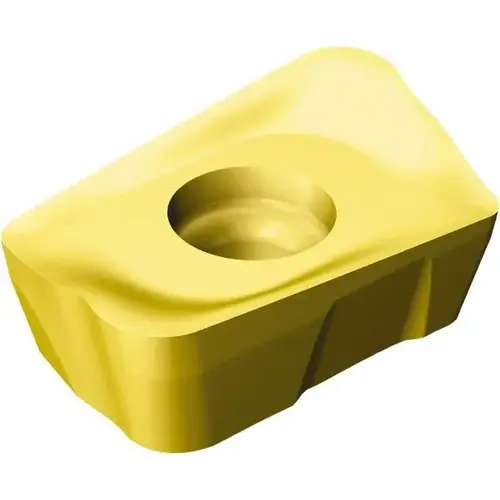

Sandvik Coromant 5745957 Milling Insert: R390-18 06 12H-PL 1025, 1025, Solid Carbide TiCN
Item #: 5745957 by Sandvik Coromant
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Corner Rounded
Material Application
Steel
ANSI Code
R390-18 06 12H-PL 1025
Number of Cutting Edges
2
Standards
ANSI
Thickness (mm)
6.35
Insert Material
Solid Carbide
Series
R390
Coating Process
PVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0472
Length (Decimal Inch - 4 Decimals)
0.6063
Manufacturers Catalog Number
R390-18 06 12H-PL 1025
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.2492
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.4331
Width (mm - 2 Decimals)
18.00
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.6299
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.4331
Corner Radius (Inch)
3/64
Insert Shape
Parallelogram
Chip Breaker
PL
Insert Style
R390
Insert Size Code
180612
Hole Diameter (Decimal Inch)
0.1634
Relief Angle
11.00
Included Angle Degree
90
Hole Diameter (Mm) ( - 0 Decimals)
0.16
Maximum Depth of Cut (mm)
16.00
Manufacturer Grade
1025
Inscribed Circle Range (Decimal Inch)
0.4000 to 0.5000
Single or Double Sided Insert
Single
Cutter Series Compatibility
M-40
Length Range (Decimal Inch)
0.6000 to 0.6500
Thickness Range (Decimal Inch)
0.2350 to 0.2500
Corner Radius (mm)
1.20
Iso Code
R390-18 06 12H-PL 1025
Product Overview
Milling Insert: R390-18 06 12H-PL 1025, 1025, Solid Carbide TiCN, TiN Coated, 6.35 mm Thick, 18 mm Wide
