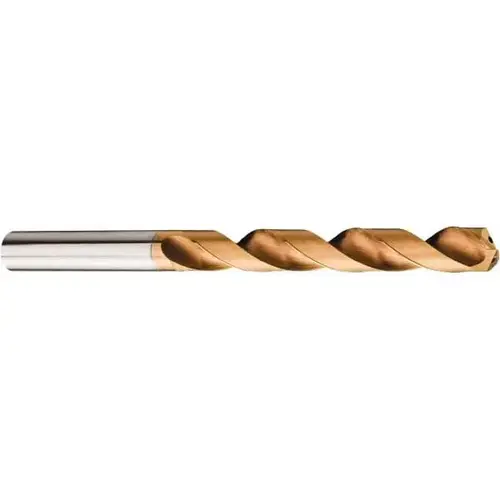

Taper Length Drill: 0.4063" Dia, 140 deg, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 5747823 Taper Length Drill: 0.4063" Dia, 140 deg, Solid Carbide TiAlN

Item #: 5747823 by Sandvik Coromant

See reviewsSee reviews
See reviews summary

$645.25

/each
SAVE UP TO 64.52
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Material Application

Steel

Shank Type

Straight-Cylindrical

Overall Length (mm)

140

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

CoroDrill Delta-C

Point Type

Standard

Spiral Type

Regular

Coating/Finish

TiAlN

Coolant Through

Yes

Drill Bit Grade

General Purpose

Drill Bit Size (Decimal Inch)

0.4063

Drill Bit Size (mm)

10.32

Drill Point Angle

140 degrees

Flute Length (Decimal Inch)

3.5827

Flute Length (mm)

91.00

Material Grade

1220

Maximum Drilling Depth (Decimal Inch)

2.9134

Overall Length (Decimal Inch)

5-2/4

Shank Diameter (Decimal Inch)

0.4724

Shank Diameter (mm)

12.00

Shank Length (Decimal Inch)

1.7717

Shank Length (mm)

45.00

UNSPSC Code

23241600

Vendor Drop Ship

N

Maximum Drilling Depth (mm)

74.00

Drill Point Length (mm)

1.80

Drill Point Length (Decimal Inch)

0.0709

Product Overview
Taper Length Drill: 0.4063" Dia, 140 deg, Solid Carbide TiAlN Finish, 3.5827" Flute Length, RH Cut Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill Delta-C
