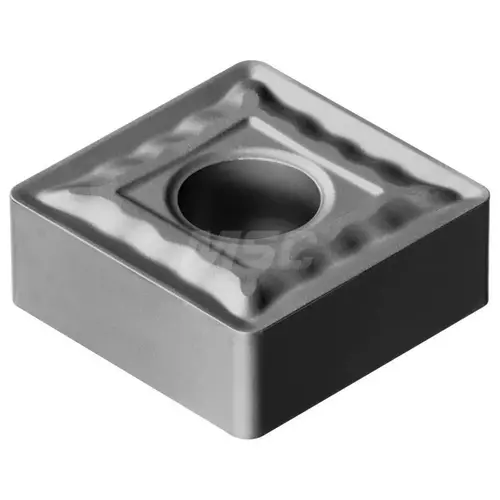

Turning Insert: SNMG432-QM H13A, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 5750365-XCP10 Turning Insert: SNMG432-QM H13A, Solid Carbide - pack of 10

Item #: 5750365-XCP10 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$239.40

/package
SAVE UP TO 23.94
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

8

Insert Thickness

4.76

Included Angle

90

Insert Material

Carbide

Series

T-Max P

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0313

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.4685

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

11.90

Corner Radius (Inch)

1/32

Insert Shape

Square

Clearance Code

N

Insert Shape Code

S

Chip Breaker

QM

Secondary Workpiece Material Code

M

Insert Style

SNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Insert Length (Inch)

1/2

Manufacturer Grade

H13A

Length Range (Decimal Inch)

0.4000 - 0.5000

Inscribed Circle (mm)

12.70

Corner Radius (mm)

0.79

Iso Code

SNMG 12 04 08-QM H13A

Product Overview
Turning Insert: SNMG432-QM H13A, Solid Carbide Uncoated, Neutral, 1/2" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 90 degree Square, Series T-Max P
