Milling Insert: 4040, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

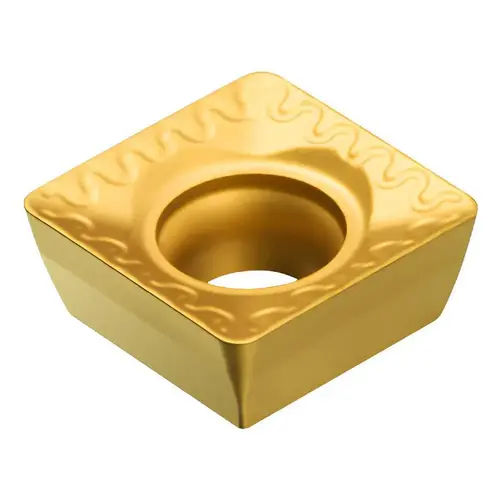

Sandvik Coromant 5751085 Milling Insert: 4040, Solid Carbide TiCN

Item #: 5751085 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$38.83

/each
SAVE UP TO 3.88
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 181 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Corner Rounded

Material Application

Steel

ANSI Code

SPMT432-WL 4040

Number of Cutting Edges

4

Standards

ANSI

Thickness (mm)

4.75

Insert Material

Solid Carbide

Series

SPMT

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0315

Length (Decimal Inch - 4 Decimals)

0.5000

Length (Inch)

1/2

Manufacturers Catalog Number

SPMT432-WL 4040

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1875

Thickness (Inch)

3/16

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

CVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.4685

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Square

Chip Breaker

WL

Insert Style

SPMT

Insert Size Code

432

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

11.00

Included Angle Degree

90

Inscribed Circle (Inch)

1/2

Manufacturer Grade

4040

Inscribed Circle Range (Decimal Inch)

0.5000 to 0.5100

Single or Double Sided Insert

Single

Cutter Series Compatibility

R215.64

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Corner Radius (mm)

0.80

Iso Code

SPMT 12 04 08-WL 4040

Product Overview
Milling Insert: 4040, Solid Carbide TiCN, Al2O3, TiN Coated, 4.75 mm Thick
