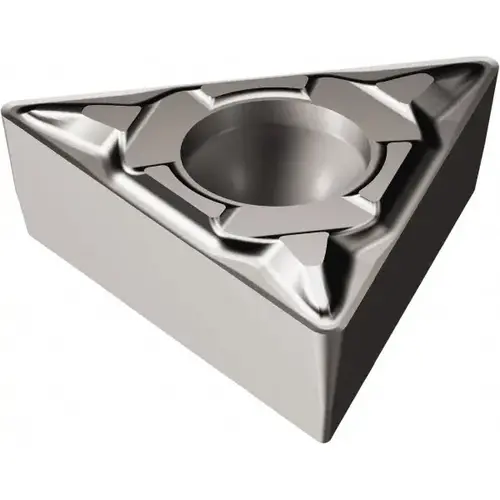

Turning Insert: TCMT1.81.50MF 1105, Solid Carbide TiAlN2

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 5752020 Turning Insert: TCMT1.81.50MF 1105, Solid Carbide TiAlN2

Item #: 5752020 by Sandvik Coromant

Brand: Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$23.45

/each
SAVE UP TO 2.34
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 60 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Number of Cutting Edges

3

Insert Thickness

2.38

Included Angle

60

Insert Material

Carbide

Series

CoroTurn 107

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiAlN2

Corner Radius (Decimal Inch)

0.0079

Manufacturers Catalog Number

5752020

Primary Workpiece Material

Steel

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3689

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Maximum Depth of Cut (Decimal Inch)

0.3610

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2188

Insert Length (mm)

9.37

Insert Shape

T - Triangle

Clearance Code

C

Insert Shape Code

T

Chip Breaker

MF

Secondary Workpiece Material Code

M

Insert Style

TCMT

Insert Size Code

1.81.50

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.0984

Relief Angle

7

Inscribed Circle (Inch)

7/32

Hole Diameter (Mm) ( - 0 Decimals)

2.50

Maximum Depth of Cut (mm)

9.17

Chip Breaker Operation

Finishing

Manufacturer Grade

1105

ISO Size Code

090202

Grade Characteristics

Special, Super Alloys (S) - High Wear-Resistance

Length Range (Decimal Inch)

0.3000 - 0.4000

ANSI Size Code

1.81.50

ISO Insert Code

TCMT090202

Corner Radius (mm)

0.20

Iso Code

TCMT 09 02 02-MF 1105

ANSI Insert Code

TCMT1.81.50

Product Overview
Turning Insert: TCMT1.81.50MF 1105, Solid Carbide TiAlN2 Coated, Neutral, 9.37 mm Long, 7/32" Inscribed Circle, 0.2 mm Corner Radius, 60 degree Triangle, Series CoroTurn 107
