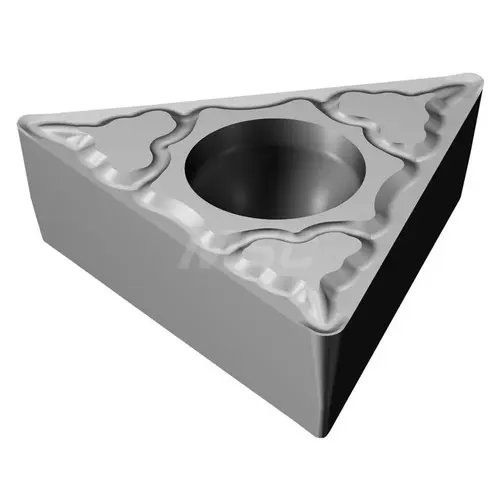

Turning Insert: TCMT1.81.51-KM H13A, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 5752171-XCP10 Turning Insert: TCMT1.81.51-KM H13A, Solid Carbide - pack of 10

Item #: 5752171-XCP10 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$155.58

/package
SAVE UP TO 15.56
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 14 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

3

Insert Thickness

2.38

Included Angle

60

Insert Material

Carbide

Series

CoroTurn 107

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0156

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3532

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Secondary Workpiece Material

Non-Ferrous Metal

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2188

Insert Length (mm)

8.97

Corner Radius (Inch)

1/64

Insert Shape

Triangle

Clearance Code

C

Insert Shape Code

T

Chip Breaker

KM

Secondary Workpiece Material Code

N

Insert Style

TCMT

Insert Size Code

1.81.51

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.0984

Relief Angle

7

Hole Diameter (Mm) ( - 0 Decimals)

2.50

Manufacturer Grade

H13A

Length Range (Decimal Inch)

0.3000 - 0.4000

Inscribed Circle (mm)

5.71

Corner Radius (mm)

0.40

Iso Code

TCMT 09 02 04-KM H13A

Product Overview
Turning Insert: TCMT1.81.51-KM H13A, Solid Carbide Uncoated, Neutral, 0.3532" Long, 5.71 mm Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series CoroTurn 107
