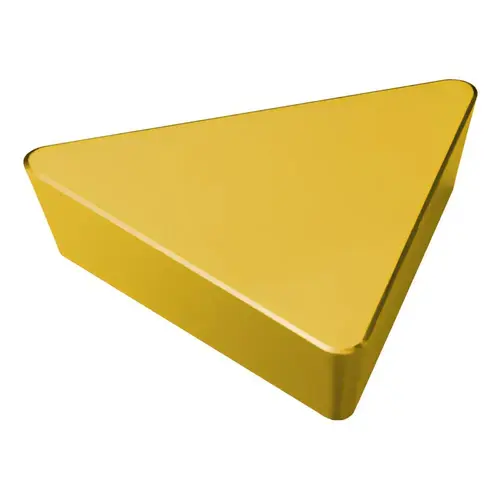

Sandvik Coromant 5755467 Milling Insert: TPMN 16 03 08 235 235, Solid Carbide TiCN

Item #: 5755467 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$19.83

/each
SAVE UP TO 1.98
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 125 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

TPMN 16 03 08 235

Thickness Range (Decimal Inch)

0.1250 to 0.1500

Length Range (Decimal Inch)

0.5000 to 0.6000

Cutter Series Compatibility

RTBAP

Single or Double Sided Insert

Single

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Manufacturer Grade

235

Inscribed Circle (Inch)

3/8

Included Angle Degree

60

Relief Angle

11.00

Insert Size Code

322

Insert Style

TPM

Chip Breaker

Flat Top

Insert Shape

Triangle

Corner Radius (Inch)

1/32

Inscribed Circle (Decimal Inch)

0.3750

Insert Hand

Neutral

Rake

Positive

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.5236

Insert Holding Method

Clamp

Coating Classification

CVD

Width (Inch)

3/8

Width (Decimal Inch - 4 Decimals)

0.3750

Vendor Drop Ship

N

UNSPSC Code

23291601

Thickness (Inch)

1/8

Thickness (Decimal Inch - 4 Decimals)

0.1250

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Manufacturers Catalog Number

TPM 322 235

Length (Decimal Inch - 4 Decimals)

0.5236

Corner Radius (Decimal Inch)

0.0315

Coating/Finish

TiCN

Coating Process

CVD

Series

TPM

Insert Material

Solid Carbide

Standards

ANSI

Number of Cutting Edges

3

ANSI Code

TPM 322 235

Material Application

Steel

Cutting Edge Style

Rounded

Product Overview
Milling Insert: TPMN 16 03 08 235 235, Solid Carbide TiCN & TiN Coated, 1/8" Thick, 0.1250 " Thick, 0.3750" Wide
