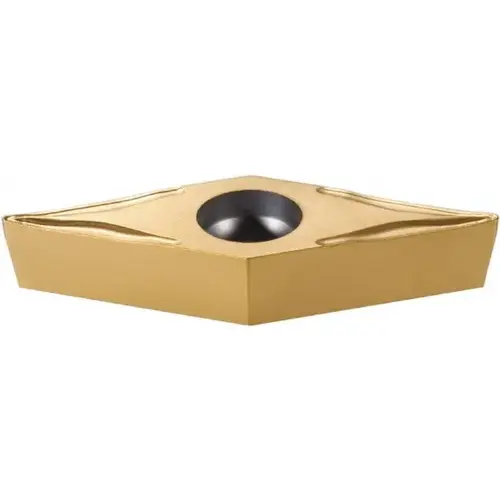

Sandvik Coromant 5755690 Turning Insert: VBMT331-UM 1525, Solid Carbide TiCN
Item #: 5755690 by Sandvik Coromant
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Number of Cutting Edges
2
Insert Thickness
4.76
Included Angle
35
Insert Material
Carbide
Series
CoroTurn 107
Coating Process
PVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0156
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.6380
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Secondary Workpiece Material
Stainless Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Insert Length (mm)
16.21
Corner Radius (Inch)
1/64
Insert Shape
Diamond
Clearance Code
B
Insert Shape Code
V
Chip Breaker
UM
Secondary Workpiece Material Code
K
Insert Style
VBMT
Insert Size Code
331
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1732
Relief Angle
5
Inscribed Circle (Inch)
3/8
Hole Diameter (Mm) ( - 0 Decimals)
4.40
Manufacturer Grade
1525
Length Range (Decimal Inch)
0.6000 - 0.6500
Corner Radius (mm)
0.40
Iso Code
VBMT 16 04 04-UM 1525
Product Overview
Turning Insert: VBMT331-UM 1525, Solid Carbide TiCN & TiN Coated, Neutral, 0.638" Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 35 degree Diamond, Series CoroTurn 107
