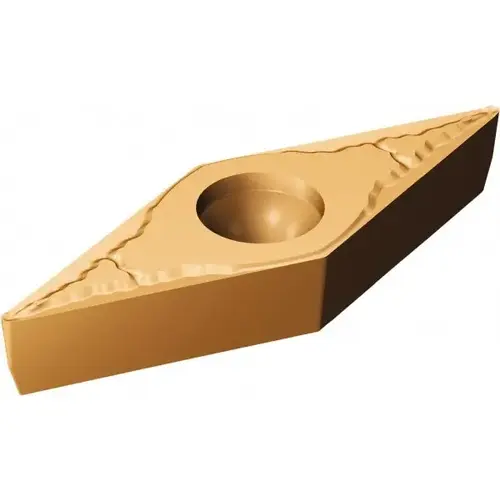

Sandvik Coromant 5755875 Turning Insert: VCMT221MM 1125, Solid Carbide TiAlN

Item #: 5755875 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$41.85

/each
SAVE UP TO 4.19
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 122 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

2

Insert Thickness

3.18

Included Angle

35

Insert Material

Carbide

Series

CoroTurn 107

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

5755875

Primary Workpiece Material

Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.4358

Insert Thickness (Decimal Inch)

0.1252

Insert Thickness (Inch)

1/8

Maximum Depth of Cut (Decimal Inch)

0.4201

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

11.70

Corner Radius (Inch)

1/64

Insert Shape

V - Diamond (Rhombic) 35-Deg

Clearance Code

C

Insert Shape Code

V

Chip Breaker

MM

Secondary Workpiece Material Code

M

Insert Style

VCMT

Insert Size Code

221

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1102

Relief Angle

7

Inscribed Circle (Inch)

1/4

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

10.67

Chip Breaker Operation

Roughing

Manufacturer Grade

1125

ISO Size Code

110304

Grade Characteristics

Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.4000 - 0.5000

ANSI Size Code

221

ISO Insert Code

VCMT110304

Corner Radius (mm)

0.40

Iso Code

VCMT 11 03 04-MM 1125

ANSI Insert Code

VCMT221

Product Overview
Turning Insert: VCMT221MM 1125, Solid Carbide TiAlN & AlCr2O3 Coated, Neutral, 11.07 mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 35 degree Diamond, Series CoroTurn 107
