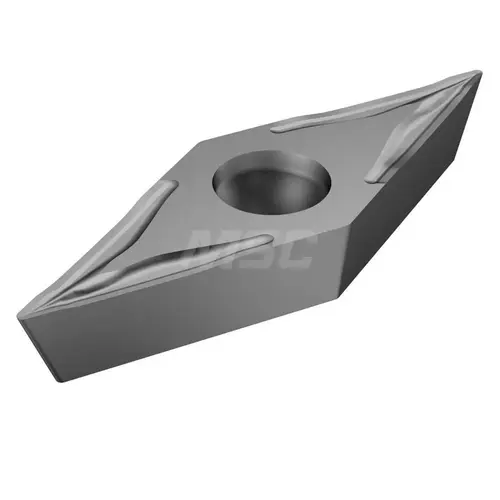

Sandvik Coromant 5755929 Turning Insert: VCGT221-UM H13A, Solid Carbide Bright/Uncoated

Item #: 5755929 by Sandvik Coromant

Brand: Sandvik Coromant

See reviewsSee reviews
See reviews summary

$46.66

/each
SAVE UP TO 4.67
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Number of Cutting Edges

2

Insert Thickness

3.18

Included Angle

35

Insert Material

Carbide

Series

CoroTurn 107

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

5755929

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.4358

Insert Thickness (Decimal Inch)

0.1252

Insert Thickness (Inch)

1/8

Maximum Depth of Cut (Decimal Inch)

0.4201

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

11.70

Corner Radius (Inch)

1/64

Insert Shape

Diamond

Clearance Code

C

Insert Shape Code

V

Chip Breaker

UM

Secondary Workpiece Material Code

M

Insert Style

VCGT

Insert Size Code

221

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1102

Relief Angle

7

Inscribed Circle (Inch)

1/4

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

10.67

Manufacturer Grade

H13A

Length Range (Decimal Inch)

0.4000 - 0.5000

Corner Radius (mm)

0.40

Iso Code

VCGT110304UMH13A

Product Overview
Turning Insert: VCGT221-UM H13A, Solid Carbide Uncoated, Neutral, 11.07 mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 35 degree Diamond, Series CoroTurn 107
