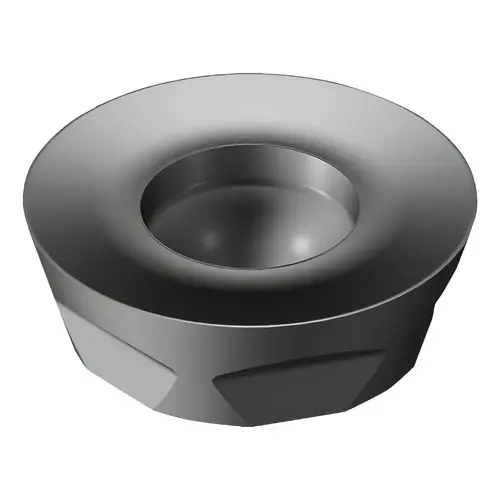

Sandvik Coromant 5853424 Milling Insert: S30T, Solid Carbide TiAlN
Item #: 5853424 by Sandvik Coromant
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Rounded
Material Application
Stainless Steel
ANSI Code
R300-0828E-PL S30T
Number of Cutting Edges
4
Standards
ANSI
Thickness (mm)
2.78
Insert Material
Solid Carbide
Series
R300
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.1575
Length (Decimal Inch - 4 Decimals)
0.3150
Manufacturers Catalog Number
R300-0828E-PL S30T
Material Grade
M25
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
Thickness (Decimal Inch - 4 Decimals)
0.1094
Thickness (Inch)
7/64
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3150
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.1575
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.3150
Insert Shape
Round
Rake Angle
15
Chip Breaker
PL
Insert Style
R300
Insert Size Code
0828
Hole Diameter (Decimal Inch)
0.1102
Included Angle Degree
360
Hole Diameter (Mm) ( - 0 Decimals)
0.11
Maximum Depth of Cut (mm)
4.00
Manufacturer Grade
S30T
Inscribed Circle Range (Decimal Inch)
0.3000 to 0.3500
Single or Double Sided Insert
Single
Cutter Series Compatibility
A10K
Length Range (Decimal Inch)
0.0000 to 0.3200
Thickness Range (Decimal Inch)
0.1000 to 0.1250
Inscribed Circle (mm)
8.00
Convex Radius (Decimal Inch)
0.1575
Corner Radius (mm)
4.00
Iso Code
R300-0828E-PL S30T
Product Overview
Milling Insert: S30T, Solid Carbide TiAlN2 Coated, 2.78 mm Thick
