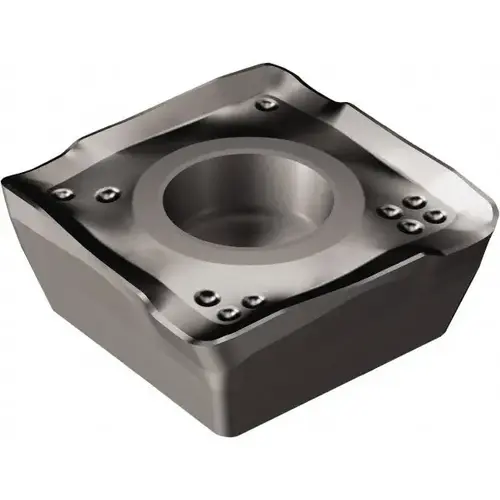

Sandvik Coromant 5854743-XCP10Click To Copy Milling Insert: 3040, Solid Carbide - pack of 10
Item #: 5854743-XCP10 by Sandvik Coromant
See reviewsSee reviews
HURRY! Low in stock
$447.10
/packageSAVE UP TO 44.71
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Corner Rounded
Material Application
Steel
Length (mm)
10.30
ANSI Code
490R-140408M-PM 3040
Number of Cutting Edges
4
Standards
ANSI
Thickness (mm)
3.90
Insert Material
Solid Carbide
Series
490
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0315
Length (Decimal Inch - 4 Decimals)
0.5433
Manufacturers Catalog Number
490R-140408M-PM 3040
Material Grade
P20
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1535
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5433
Coating Classification
CVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.3937
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.5433
Corner Radius (Inch)
1/32
Insert Shape
Square
Rake Angle
23
Chip Breaker
PM
Insert Style
490
Insert Size Code
140408
Hole Diameter (Decimal Inch)
0.1614
Included Angle Degree
90
Hole Diameter (Mm) ( - 0 Decimals)
0.16
Maximum Depth of Cut (mm)
10.00
Manufacturer Grade
3040
Inscribed Circle Range (Decimal Inch)
0.5100 to 0.6000
Single or Double Sided Insert
Single
Cutter Series Compatibility
490
Length Range (Decimal Inch)
0.5000 to 0.6000
Thickness Range (Decimal Inch)
0.1500 to 0.1750
Inscribed Circle (mm)
13.80
Corner Radius (mm)
0.80
Iso Code
490R-140408M-PM 3040
Product Overview
Milling Insert: 3040, Solid Carbide TiCN, Al2O3 Coated, 3.9 mm Thick
