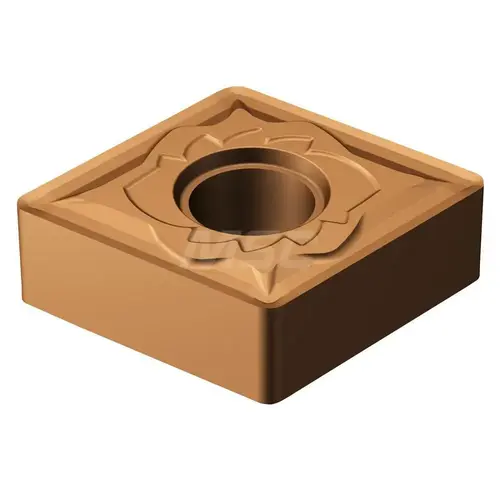

Sandvik Coromant 6066611 Turning Insert: CNMG643-SMR 1115, Solid Carbide TiAlN

Item #: 6066611 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$67.73

/each
SAVE UP TO 6.77
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 52 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

4

Insert Thickness

6.35

Included Angle

80

Insert Material

Carbide

Series

T-Max P

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0469

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.7143

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Secondary Workpiece Material

Superalloy

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.7500

Insert Length (mm)

18.14

Corner Radius (Inch)

3/64

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

C

Chip Breaker

SMR

Secondary Workpiece Material Code

S

Insert Style

CNMG

Insert Size Code

643

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.3120

Relief Angle

0

Inscribed Circle (Inch)

3/4

Hole Diameter (Mm) ( - 0 Decimals)

7.93

Manufacturer Grade

1115

Length Range (Decimal Inch)

0.7000 - 10.0000

Inscribed Circle (mm)

19.05

Corner Radius (mm)

1.19

Iso Code

CNMG 19 06 12-SMR 1115

Product Overview
Turning Insert: CNMG643-SMR 1115, Solid Carbide TiAlN & AlCr2O3 Coated, Neutral, 0.7143" Long, 3/4" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond, Series T-Max P
