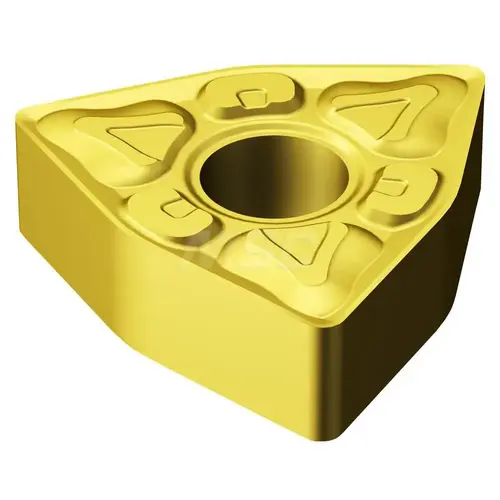

Sandvik Coromant 6107710-XCP10 Turning Insert: WNMG432-XM GC30, Solid Carbide - pack of 10
Item #: 6107710-XCP10 by Sandvik Coromant
Brand: Sandvik Coromant
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Number of Cutting Edges
6
Insert Thickness
4.76
Included Angle
80
Insert Material
Carbide
Series
T-Max P
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0313
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.3105
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Secondary Workpiece Material
Stainless Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.5000
Insert Length (mm)
7.89
Corner Radius (Inch)
1/32
Insert Shape
Trigon
Clearance Code
N
Insert Shape Code
W
Chip Breaker
XM
Secondary Workpiece Material Code
M
Insert Style
WNMG
Insert Size Code
0804
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.2030
Relief Angle
0
Inscribed Circle (Inch)
1/2
Hole Diameter (Mm) ( - 0 Decimals)
5.16
Manufacturer Grade
GC30
Length Range (Decimal Inch)
0.3000 - 0.4000
Inscribed Circle (mm)
12.70
Corner Radius (mm)
0.79
Iso Code
WNMG 08 04 08-XM GC30
Product Overview
Turning Insert: WNMG432-XM GC30, Solid Carbide TiCN, AI2O3 & TiN Coated, Neutral, 0.3105" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series T-Max P
