Turning Insert: CCMT32.52KR 3210, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

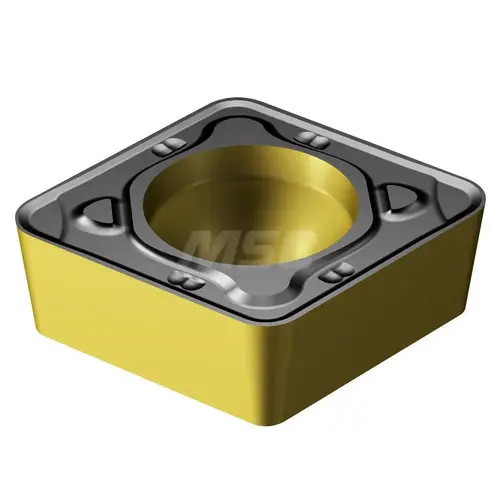

Sandvik Coromant 6162298 Turning Insert: CCMT32.52KR 3210, Solid Carbide TiCN

Item #: 6162298 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$25.58

/each
SAVE UP TO 2.56
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 311 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

2

Insert Thickness

3.97

Included Angle

80

Insert Material

Carbide

Series

CoroTurn 107

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

6162298

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3807

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.3492

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

9.67

Corner Radius (Inch)

1/32

Insert Shape

Diamond

Clearance Code

C

Insert Shape Code

C

Chip Breaker

KR

Insert Style

CCMT

Insert Size Code

32.52

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

7

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Maximum Depth of Cut (mm)

8.87

Manufacturer Grade

3210

Length Range (Decimal Inch)

0.3000 - 0.4000

Corner Radius (mm)

0.80

Iso Code

CCMT09T308KR3210

Product Overview
Turning Insert: CCMT32.52KR 3210, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 9.67 mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series CoroTurn 107
