Jobber Length Drill Bit: 1/4" Dia, 140 degree, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

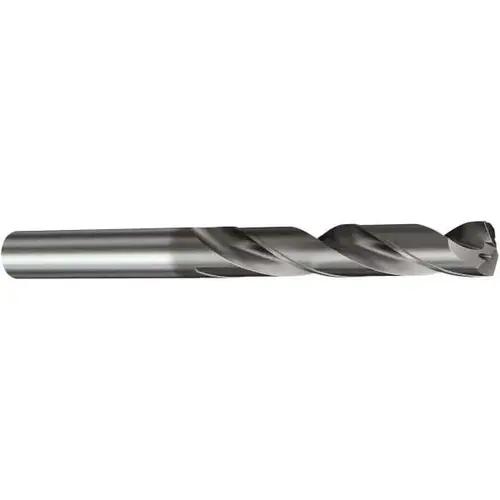

Sandvik Coromant 6240952 Jobber Length Drill Bit: 1/4" Dia, 140 degree, Solid Carbide TiAlN

Item #: 6240952 by Sandvik Coromant

Brand: Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$215.22

/each
SAVE UP TO 21.52
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 14 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

91.00

Number of Flutes

2

Cutting Direction

Right Hand

Series

460

Point Type

Standard

Drill Bit Material

Solid Carbide

Spiral Type

Regular

Tool Application

Drilling

Coating/Finish

TiAlN

Coolant Through

Yes

Double Margin

No

Drill Bit Grade

High Performance

Drill Bit Size (Decimal Inch)

0.2500

Drill Bit Size (Inch)

1/4

Drill Bit Size (mm)

6.35

Drill Bit Size Range (Decimal Inch)

0.2500 - 0.3000

Drill Point Angle

140 degrees

Flute By Diameter Ratio

7xD

Flute Length (Decimal Inch)

2.0866

Flute Length (mm)

53.00

Material Grade

GC34

Maximum Drilling Depth (Decimal Inch)

2.0866

Number of Flats

0

Overall Length (Decimal Inch)

3.5827in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.3150

Shank Diameter (mm)

8.00

Shank Length (Decimal Inch)

1.4961in

Shank Length (mm)

36.00

Tool Performance

High Performance

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Size Range (mm)

6.00 - 7.00

Maximum Drilling Depth (mm)

32.70

Specification Designation

DIN

Specification Number

DIN 6535HA

Drill Point Length (mm)

0.90

Drill Point Length (Decimal Inch)

0.0354

Product Overview
Jobber Length Drill Bit: 1/4" Dia, 140 degree, Solid Carbide TiAlN Coated, 91 mm OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
