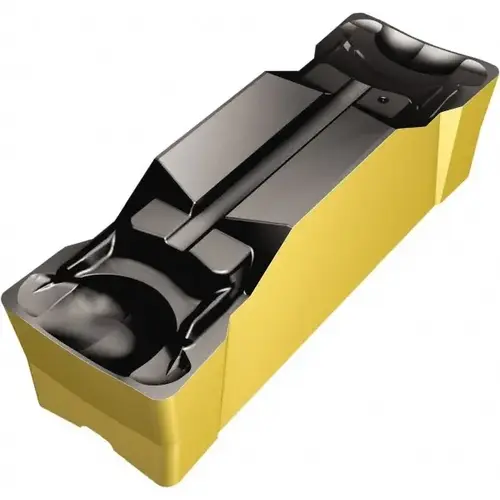

Grooving Insert: N123KGM 4325, Solid Carbide TiCN/Al2O3/TiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 6532095 Grooving Insert: N123KGM 4325, Solid Carbide TiCN/Al2O3/TiN

Item #: 6532095 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$87.32

/each
SAVE UP TO 8.73
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 81 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Solid Carbide

Series

CoroCut 1-2

Coating Process

MT-CVD

Coating/Finish

TiCN/Al2O3/TiN

Corner Radius (Decimal Inch)

0.0100

Manufacturers Catalog Number

N123K2-0635-0003-GM 4325

Overall Length (Decimal Inch)

0.9602

Overall Width (Decimal Inch - 4 Decimals)

0.2500

Overall Width (Inch)

1/4

UNSPSC Code

23242105

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.2500

Cutting Width (Inch)

1/4

Insert Thickness (Decimal Inch)

0.1713

Maximum Depth of Cut (Decimal Inch)

0.8898

Multi-use Tool

Yes

Overall Width (mm)

6.35

Rake

Neutral

Insert Hand

Neutral

Rake Angle

7.00

Chip Breaker

GM

Insert Style

N123

Maximum Depth of Cut (mm)

22.60

Cutting Height (Decimal Inch)

0.1713

Minimum Corner Radius (Decimal Inch)

0.0061

Manufacturer Grade

4325

Maximum Depth Of Cut Range (Decimal Inch)

0.3000 to 1.0000

Insert Seat Size

K

Maximum Depth Of Cut Range (mm)

20.00+

Corner Radius (mm)

0.25

Cutting Width (mm)

6.35

Iso Code

N123K2-0635-0003-GM 4325

Maximum Corner Radius (Decimal Inch)

0.0139

Cutting Height (mm)

4.35

Product Overview
Grooving Insert: N123KGM 4325, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 6.35 mm Cutting Width, 22.6 mm Max Depth, Series CoroCut 1-2
