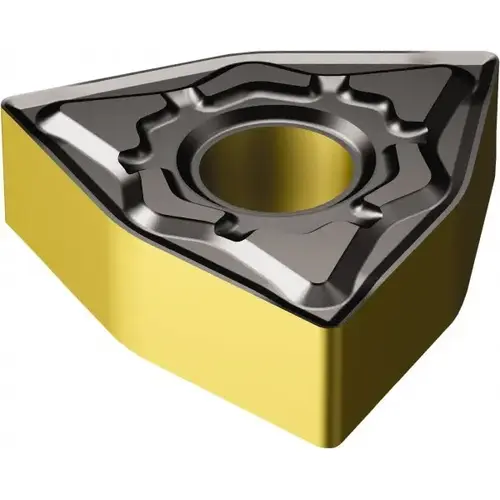

Turning Insert: WNMG431-KF 3225, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 6868497-XCP10 Turning Insert: WNMG431-KF 3225, Solid Carbide - pack of 10

Item #: 6868497-XCP10 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$321.12

/package
SAVE UP TO 32.11
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 21 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Rounded

Number of Cutting Edges

6

Insert Thickness

4.76

Included Angle

80

Insert Material

Carbide

Series

T-Max P

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0156

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/64

Insert Shape

W - Trigon 80-Deg

Clearance Code

N

Insert Shape Code

W

Chip Breaker

KF

Insert Style

WNMG

Insert Size Code

0804

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Maximum Depth of Cut (mm)

8.29

Chip Breaker Operation

Finishing

Manufacturer Grade

3225

ISO Size Code

080404

Grade Characteristics

Cast Iron (K) - High Wear-Resistance to High Toughness

ANSI Size Code

431

Inscribed Circle (mm)

12.70

ISO Insert Code

WNMG080404

Corner Radius (mm)

0.40

Iso Code

WNMG 08 04 04-KF 3225

ANSI Insert Code

WNMG431

Product Overview
Turning Insert: WNMG431-KF 3225, Solid Carbide TiCN, AI2O3 & TiN Coated, Neutral, 1/2" Inscribed Circle, 1/64" Corner Radius, 80 degree Trigon, Series T-Max P
