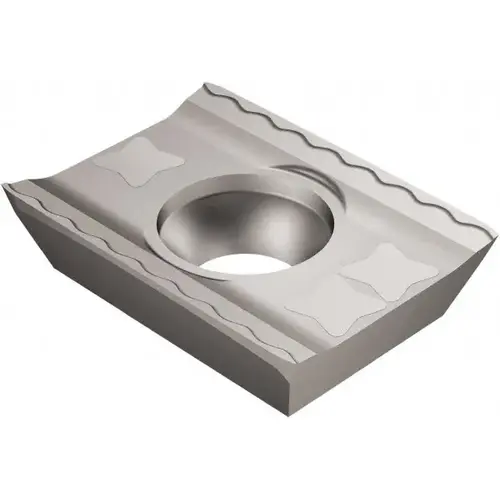

Milling Insert: LDHT 19 04 00-PL 1130, 1130, Solid Carbide AlTiCrN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 6971934 Milling Insert: LDHT 19 04 00-PL 1130, 1130, Solid Carbide AlTiCrN

Item #: 6971934 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$61.51

/each
SAVE UP TO 6.15
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 590 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Corner Rounded

Material Application

Steel

ANSI Code

LDHT 19 04 00-PL 1130

Number of Cutting Edges

2

Standards

ANSI

Thickness (mm)

4.75

Insert Material

Solid Carbide

Series

LDHT

Coating Process

PVD

Coating/Finish

AlTiCrN

Corner Radius (Decimal Inch)

0.0079

Length (Decimal Inch - 4 Decimals)

0.7520

Manufacturers Catalog Number

LDHT 19 04 00-PL 1130

Material Grade

P30

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1870

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5420

Width (mm - 2 Decimals)

13.77

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.7520

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5420

Corner Radius (Inch)

1/128

Insert Shape

Rectangle

Chip Breaker

PL

Insert Style

LDHT

Insert Size Code

190400

Hole Diameter (Decimal Inch)

0.2244

Relief Angle

15.00

Included Angle Degree

90

Manufacturer Grade

1130

Inscribed Circle Range (Decimal Inch)

0.5100 to 0.6000

Single or Double Sided Insert

Single

Cutter Series Compatibility

R215.64

Length Range (Decimal Inch)

0.7000 to 0.9000

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Iso Code

LDHT 19 04 00-PL 1130

Product Overview
Milling Insert: LDHT 19 04 00-PL 1130, 1130, Solid Carbide AlTiCrN Coated, 4.75 mm Thick, 13.77 mm Wide
