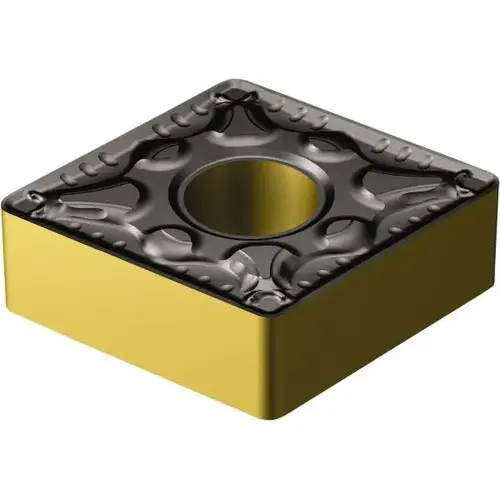

Turning Insert: CNMG433-PM 4335, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 7080822 Turning Insert: CNMG433-PM 4335, Solid Carbide TiCN

Item #: 7080822 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$31.22

/each
SAVE UP TO 3.12
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 226 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

4

Insert Thickness

4.76

Included Angle

80

Insert Material

Carbide

Series

T-Max P

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0469

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

3/64

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

C

Chip Breaker

PM

Insert Style

CNMG

Insert Size Code

433

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Manufacturer Grade

4335

Inscribed Circle (mm)

12.70

Corner Radius (mm)

1.19

Iso Code

CNMG 12 04 12-PM 4335

Product Overview
Turning Insert: CNMG433-PM 4335, Solid Carbide TiCN, AI2O3 & TiN Coated, Neutral, 1/2" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond, Series T-Max P
