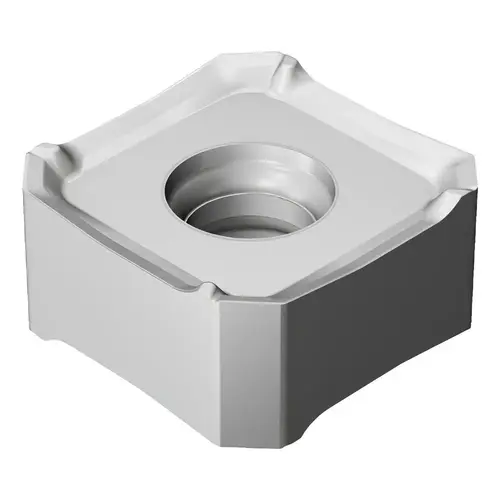

Sandvik Coromant 7101114 Milling Insert: 1130, Solid Carbide AlTiCrN

Item #: 7101114 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$43.94

/each
SAVE UP TO 4.39
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 118 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

345R-13T5M-MM 1130

Corner Radius (mm)

0.80

Inscribed Circle (mm)

13.00

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Length Range (Decimal Inch)

0.5000 to 0.6000

Cutter Series Compatibility

345

Single or Double Sided Insert

Double

Inscribed Circle Range (Decimal Inch)

0.5100 to 0.6000

Manufacturer Grade

1130

Included Angle Degree

90

Relief Angle

0.00

Hole Diameter (Decimal Inch)

0.1890

Insert Size Code

13T5

Insert Style

345

Chip Breaker

MM

Rake Angle

24

Insert Shape

Square

Corner Radius (Inch)

1/32

Inscribed Circle (Decimal Inch)

0.5118

Insert Hand

Right Hand

Rake

Negative

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.2362

Insert Holding Method

Screw

Coating Classification

PVD

Width (Decimal Inch - 4 Decimals)

0.5118

Vendor Drop Ship

N

UNSPSC Code

23291601

Thickness (Decimal Inch - 4 Decimals)

0.2146

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

P30

Manufacturers Catalog Number

345R-13T5M-MM 1130

Length (Decimal Inch - 4 Decimals)

0.5118

Corner Radius (Decimal Inch)

0.0315

Coating/Finish

AlTiCrN

Coating Process

PVD

Series

345

Insert Material

Solid Carbide

Thickness (mm)

5.95

Standards

ANSI

Number of Cutting Edges

8

ANSI Code

345R-13T5M-MM 1130

Material Application

Steel

Cutting Edge Style

Corner Rounded

Product Overview
Milling Insert: 1130, Solid Carbide AlTiCrN Coated, 5.95 mm Thick
