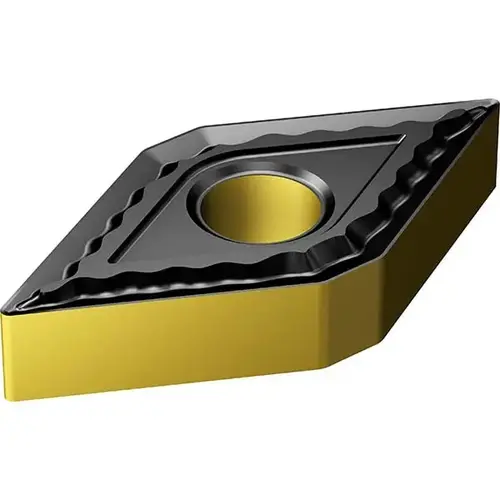

Sandvik Coromant 7859181-XCP10 Turning Insert: DNMG333-QM 4415, Solid Carbide - pack of 10

Item #: 7859181-XCP10 by Sandvik Coromant

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Thickness

4.76

Included Angle

55

Insert Material

Carbide

Series

T-Max P

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

DNMG333QM4415

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3750

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

D

Chip Breaker

G

Secondary Workpiece Material Code

P

Insert Style

DNMG

Insert Size Code

1104

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

3/8

Manufacturer Grade

4415

Inscribed Circle (mm)

9.53

Corner Radius (mm)

1.19

Iso Code

DNMG 11 04 12-QM 4415

Product Overview
Turning Insert: DNMG333-QM 4415, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 9.53 mm Inscribed Circle, 1.19 mm Corner Radius, 55 degree Diamond, Series T-Max P
