Turning Insert: DNMG332-PM 4415, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

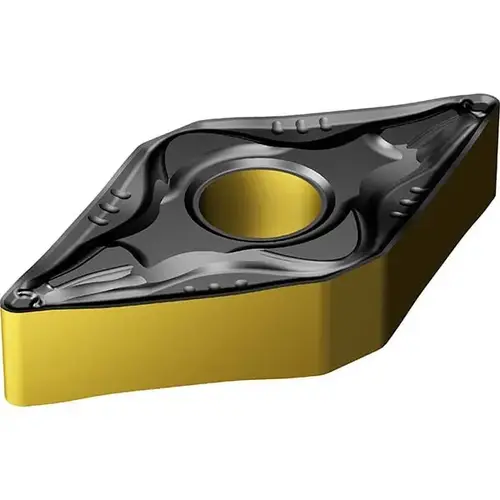

Sandvik Coromant 7859232 Turning Insert: DNMG332-PM 4415, Solid Carbide TiCN

Item #: 7859232 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$36.04

/each
SAVE UP TO 3.60
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 185 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Insert Thickness

4.76

Insert Thickness (Decimal Inch)

0.1875

Corner Radius (mm)

0.79

Vendor Drop Ship

N

Iso Code

DNMG 11 04 08-PM 4415

Secondary Workpiece Material

Cast Iron

Relief Angle

0

Clearance Code

N

Insert Holding Method

Clamp

Coating/Finish

TiCN

UNSPSC Code

23242105

Insert Style

DNMG

Manufacturers Catalog Number

DNMG 332-PM 4415

Insert Hand

Neutral

Manufacturer Grade

4415

Inscribed Circle (Inch)

3/8

Inscribed Circle (mm)

9.53

Secondary Workpiece Material Code

K

Inscribed Circle (Decimal Inch)

0.3750

Coating Process

CVD

Primary Workpiece Material

Steel

Insert Shape Code

D

Corner Radius (Decimal Inch)

0.0313

Insert Thickness (Inch)

3/16

Hole Diameter (Decimal Inch)

0.1500

Chip Breaker

PM

Tolerance Code

M

Wiper Edge

No

Insert Size Code

1104

Included Angle

55

Number of Cutting Edges

4

Series

T-Max P

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Insert Shape

Diamond

Primary Workpiece Material Code

P

Product Overview
Turning Insert: DNMG332-PM 4415, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 3/8" Inscribed Circle, 0.79 mm Corner Radius, 55 degree Diamond, Series T-Max P
