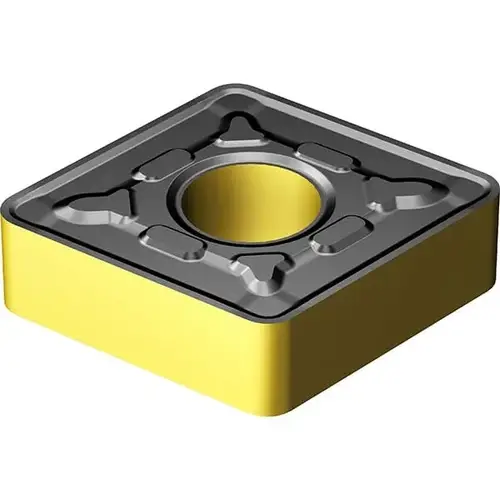

Sandvik Coromant 7859251-XCP10 Turning Insert: CNMG543-PR 4415, Solid Carbide - pack of 10

Item #: 7859251-XCP10 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$494.02

/package
SAVE UP TO 49.40
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 31 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

CNMG 16 06 12-PR 4415

Corner Radius (mm)

1.19

Inscribed Circle (mm)

15.88

Manufacturer Grade

4415

Hole Diameter (Mm) ( - 0 Decimals)

6.35

Inscribed Circle (Inch)

5/8

Relief Angle

0

Hole Diameter (Decimal Inch)

0.2500

Tolerance Code

M

Insert Size Code

1606

Insert Style

CNMG

Secondary Workpiece Material Code

K

Chip Breaker

PR

Insert Shape Code

C

Clearance Code

N

Insert Shape

Diamond

Inscribed Circle (Decimal Inch)

0.6250

Wiper Edge

No

Insert Hand

Neutral

Secondary Workpiece Material

Cast Iron

Insert Thickness (Inch)

1/4

Insert Thickness (Decimal Inch)

0.2500

Insert Holding Method

Clamp

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Manufacturers Catalog Number

CNMG 543-PR 4415

Corner Radius (Decimal Inch)

0.0469

Coating/Finish

TiCN

Coating Process

CVD

Series

T-Max P

Insert Material

Carbide

Included Angle

80

Insert Thickness

6.35

Number of Cutting Edges

4

Product Overview
Turning Insert: CNMG543-PR 4415, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 5/8" Inscribed Circle, 1.19 mm Corner Radius, 80 degree Diamond, Series T-Max P
