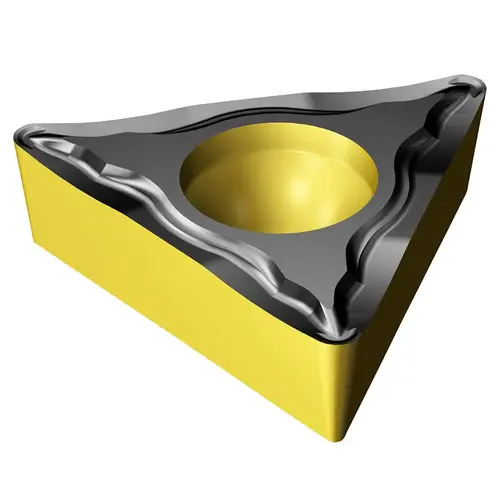

Turning Insert: TCMT1.81.51-UM 4415, Solid Carbide Al2O3

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 7860481 Turning Insert: TCMT1.81.51-UM 4415, Solid Carbide Al2O3

Item #: 7860481 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off

$22.84

/each
SAVE UP TO 2.28
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

3

Included Angle

60

Insert Material

Carbide

Series

CoroTurn 107

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

TCMT 1.8(1.5)1-UM

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2188

Insert Shape

Triangle

Clearance Code

C

Insert Shape Code

T

Chip Breaker

UM

Secondary Workpiece Material Code

K

Insert Style

TCMT

Insert Size Code

0902

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.0984

Relief Angle

7

Inscribed Circle (Inch)

7/32

Hole Diameter (Mm) ( - 0 Decimals)

2.50

Manufacturer Grade

4415

Corner Radius (mm)

0.40

Iso Code

TCMT 09 02 04-UM 4415

Product Overview
Turning Insert: TCMT1.81.51-UM 4415, Solid Carbide Al2O3, TiN & TiCN Coated, Neutral, 7/32" Inscribed Circle, 0.4 mm Corner Radius, 60 degree Triangle, Series CoroTurn 107
