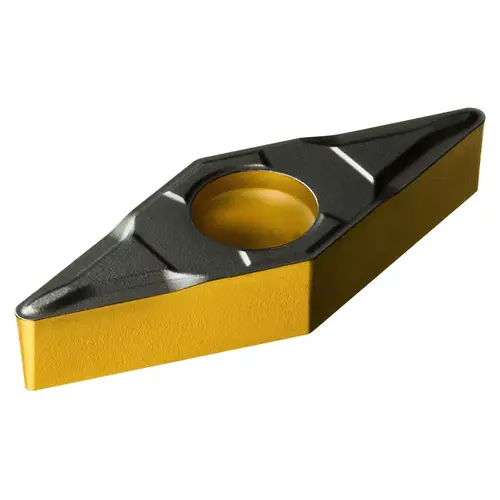

Sandvik Coromant 7860513 Turning Insert: VBMT221-PF 4415, Solid Carbide Al2O3

Item #: 7860513 by Sandvik Coromant

Brand: Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$40.10

/each
SAVE UP TO 4.01
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 230 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Number of Cutting Edges

2

Included Angle

35

Insert Material

Carbide

Series

CoroTurn 107

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

VBMT 221-PF

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1250

Insert Thickness (Inch)

1/8

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Insert Shape

Diamond

Clearance Code

B

Insert Shape Code

V

Chip Breaker

PF

Secondary Workpiece Material Code

K

Insert Style

VBMT

Insert Size Code

1103

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1102

Relief Angle

5

Inscribed Circle (Inch)

1/4

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Manufacturer Grade

4415

Corner Radius (mm)

0.40

Iso Code

VBMT 11 03 04-PF 4415

Product Overview
Turning Insert: VBMT221-PF 4415, Solid Carbide Al2O3, TiN & TiCN Coated, Neutral, 1/4" Inscribed Circle, 0.4 mm Corner Radius, 35 degree Diamond, Series CoroTurn 107
