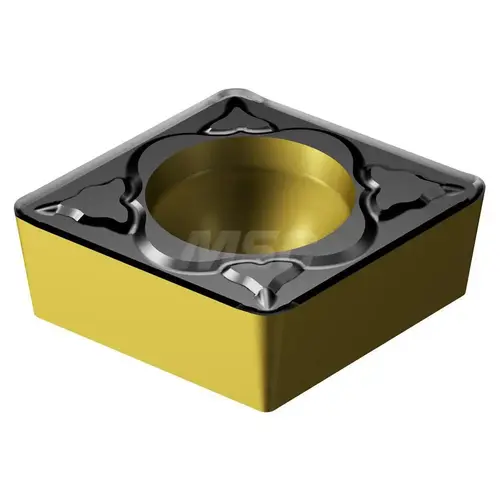

Turning Insert: CCMT21.51-PM 4425, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 7860809 Turning Insert: CCMT21.51-PM 4425, Solid Carbide TiCN

Item #: 7860809 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$25.95

/each
SAVE UP TO 2.60
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 700 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

2

Insert Thickness

2.38

Included Angle

80

Insert Material

Carbide

Series

CoroTurn 107

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

CCMT 2(1.5)1-PM 4425

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.0938

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.1102

Insert Shape

Diamond

Clearance Code

C

Insert Shape Code

C

Chip Breaker

PM

Secondary Workpiece Material Code

K

Insert Style

CCMT

Insert Size Code

0602

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1102

Relief Angle

7

Manufacturer Grade

4425

Inscribed Circle (mm)

6.35

Corner Radius (mm)

0.40

Iso Code

CCMT 06 02 04-PM 4425

Product Overview
Turning Insert: CCMT21.51-PM 4425, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 6.35 mm Inscribed Circle, 0.4 mm Corner Radius, 80 degree Diamond, Series CoroTurn 107
