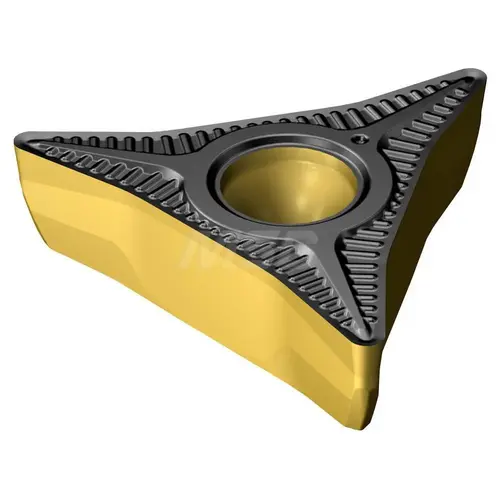

Sandvik Coromant 7860962 Turning Insert: CP-A1104-L5 4425, Solid Carbide TiCN

Item #: 7860962 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$45.60

/each
SAVE UP TO 4.56
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 100 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

3

Insert Thickness

6.00

Insert Material

Carbide

Series

CoroTurn Prime

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

CP-A1104-L5 4425

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.2362

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.1457

Insert Shape

Triangle

Insert Shape Code

A

Chip Breaker

L5

Secondary Workpiece Material Code

K

Insert Style

CPA

Insert Size Code

11

Hole Diameter (Decimal Inch)

0.1457

Relief Angle

6

Manufacturer Grade

4425

Inscribed Circle (mm)

11.00

Corner Radius (mm)

0.40

Iso Code

CP-A1104-L5 4425

Product Overview
Turning Insert: CP-A1104-L5 4425, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 11 mm Inscribed Circle, 0.4 mm Corner Radius, Series CoroTurn Prime
