Turning Insert: TCMT222-PM 4425, Solid Carbide Al2O3

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

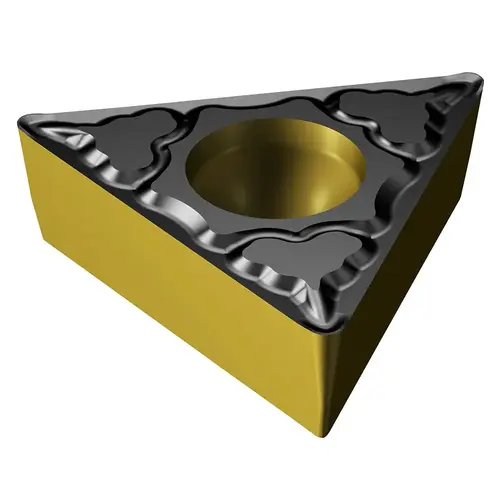

Sandvik Coromant 7861067 Turning Insert: TCMT222-PM 4425, Solid Carbide Al2O3

Item #: 7861067 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$29.43

/each
SAVE UP TO 2.94
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 68 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

3

Included Angle

60

Insert Material

Carbide

Series

CoroTurn 107

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

TCMT 222-PM

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1250

Insert Thickness (Inch)

1/8

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Corner Radius (Inch)

1/32

Insert Shape

Triangle

Clearance Code

C

Insert Shape Code

T

Chip Breaker

PM

Secondary Workpiece Material Code

K

Insert Style

TCMT

Insert Size Code

1103

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1102

Relief Angle

7

Inscribed Circle (Inch)

1/4

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Manufacturer Grade

4425

Corner Radius (mm)

0.79

Iso Code

TCMT 11 03 08-PM 4425

Product Overview
Turning Insert: TCMT222-PM 4425, Solid Carbide Al2O3, TiN & TiCN Coated, Neutral, 1/4" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series CoroTurn 107
