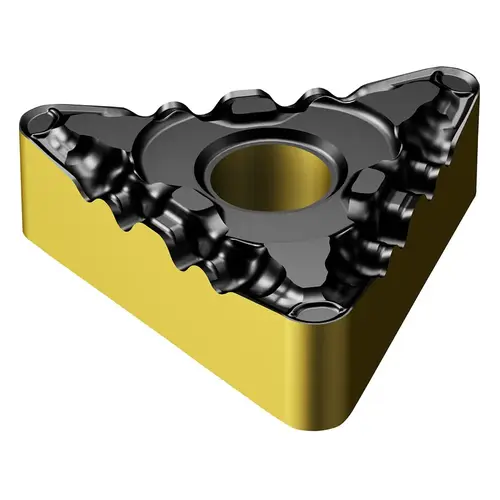

Turning Insert: TNMG432-PF 4425, Solid Carbide - Al2O3, TiN & TiCN Coated, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series T-Max P

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 7861227 Turning Insert: TNMG432-PF 4425, Solid Carbide - Al2O3, TiN & TiCN Coated, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series T-Max P

Item #: 7861227 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$37.57

/each
SAVE UP TO 3.76
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 40 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

6

Included Angle

60

Insert Material

Carbide

Series

T-Max P

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

TNMG 432-PF

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Triangle

Clearance Code

N

Insert Shape Code

T

Chip Breaker

PF

Secondary Workpiece Material Code

K

Insert Style

TNMG

Insert Size Code

2204

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Manufacturer Grade

4425

Corner Radius (mm)

0.79

Iso Code

TNMG 22 04 08-PF 4425

Product Overview
Turning Insert: TNMG432-PF 4425, Solid Carbide - Al2O3, TiN & TiCN Coated, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series T-Max P Al2O3, TiN & TiCN Coated, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series T-Max P
