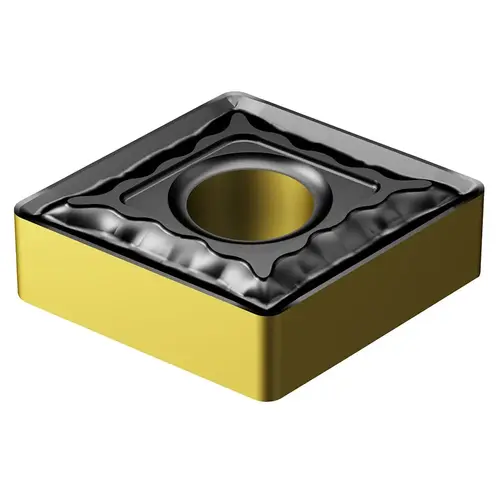

Turning Insert: CNMG432-QM S205, Solid Carbide Al2O3

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 8003540 Turning Insert: CNMG432-QM S205, Solid Carbide Al2O3

Item #: 8003540 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$35.21

/each
SAVE UP TO 3.52
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 102 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

4

Included Angle

80

Insert Material

Carbide

Series

T-Max P

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

CNMG 432-QM

Primary Workpiece Material

Superalloy

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

C

Chip Breaker

QM

Insert Style

CNMG

Insert Size Code

1204

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Manufacturer Grade

S205

Corner Radius (mm)

0.79

Iso Code

CNMG 12 04 08-QM S205

Product Overview
Turning Insert: CNMG432-QM S205, Solid Carbide Al2O3, TiN & TiCN Coated, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series T-Max P
