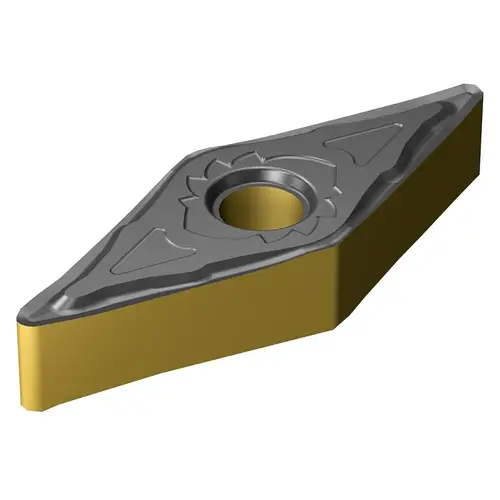

Turning Insert: VNGG 16 04 04-SGF S205, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 8003619 Turning Insert: VNGG 16 04 04-SGF S205, Solid Carbide TiCN

Item #: 8003619 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$61.91

/each
SAVE UP TO 6.19
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 170 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Included Angle

35

Insert Material

Carbide

Series

T-Max P

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

VNGG 16 04 04-SGF S205

Primary Workpiece Material

Superalloy

Primary Workpiece Material Code

N

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3750

Insert Shape

V - Diamond (Rhombic) 35-Deg

Clearance Code

N

Insert Shape Code

V

Chip Breaker

SGF

Insert Style

VNGG

Insert Size Code

1604

Tolerance Code

G

Relief Angle

0

Inscribed Circle (Inch)

3/8

Chip Breaker Operation

Finishing

Manufacturer Grade

S205

ISO Size Code

160404

Grade Characteristics

Aluminum & Non-Ferrous (N) - High Wear-Resistance

ANSI Size Code

331

ISO Insert Code

VNGG160404

Iso Code

VNGG 16 04 04-SGF S205

ANSI Insert Code

VNGG331

Product Overview
Turning Insert: VNGG 16 04 04-SGF S205, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 0.375" Inscribed Circle, 0.0156" Corner Radius, 35 degree Diamond, Series T-Max P
