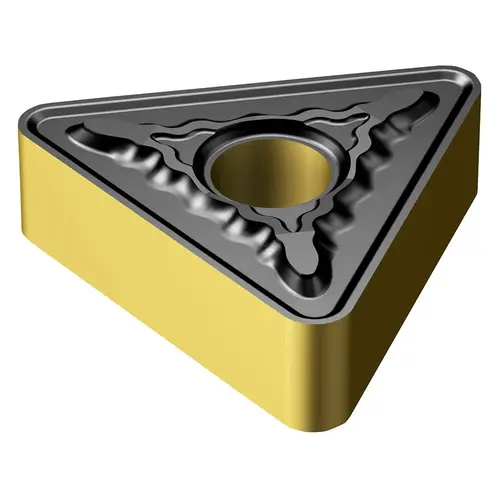

Turning Insert: TNMG 16 04 08-MR 4425, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 8019663-XCP10 Turning Insert: TNMG 16 04 08-MR 4425, Solid Carbide - pack of 10

Item #: 8019663-XCP10 by Sandvik Coromant

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Series

TNMG-MR (ISO P)

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

TNMG 16 04 08-MR 4425

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3750

Insert Shape

T - Triangle

Clearance Code

N

Insert Shape Code

T

Chip Breaker

MR

Secondary Workpiece Material Code

K

Insert Style

TNMG

Insert Size Code

1604

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

3/8

Chip Breaker Operation

Roughing

Manufacturer Grade

4425

ISO Size Code

160408

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

ANSI Size Code

332

ISO Insert Code

TNMG160408

Iso Code

TNMG 16 04 08-MR 4425

ANSI Insert Code

TNMG332

Product Overview
Turning Insert: TNMG 16 04 08-MR 4425, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 0.375" Inscribed Circle, 0.0313" Corner Radius, Series TNMG-MR (ISO P)
