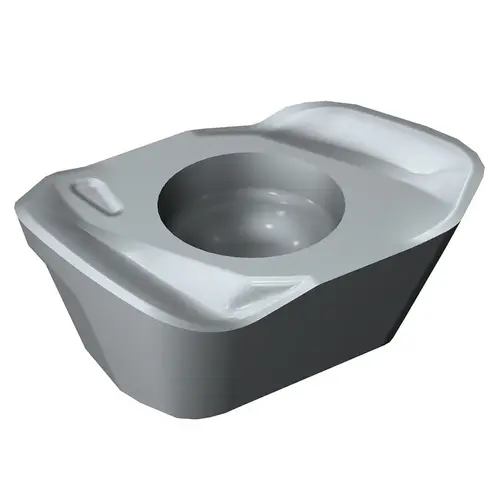

Milling Insert: MH20-080425M-M50 1130, 1130, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 8029501-XCP10 Milling Insert: MH20-080425M-M50 1130, 1130, Solid Carbide - pack of 10

Item #: 8029501-XCP10 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$233.80

/package
SAVE UP TO 23.38
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 12 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Corner Rounded

Material Application

Steel

ANSI Code

MH20-080425M-M50 1130

Number of Cutting Edges

2

Standards

ANSI

Insert Material

Solid Carbide

Series

MH20

Coating Process

PVD

Coating/Finish

AlTiCrN

Corner Radius (Decimal Inch)

0.0827

Length (Decimal Inch - 4 Decimals)

0.2323

Manufacturers Catalog Number

MH20-080425M-M50 1130

Material Grade

P30

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1587

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3346

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.0472

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3346

Insert Shape

Parallelogram

Rake Angle

13

Chip Breaker

M50

Insert Style

MH20

Insert Size Code

080425

Hole Diameter (Decimal Inch)

0.1339

Included Angle Degree

105

Manufacturer Grade

1130

Inscribed Circle Range (Decimal Inch)

0.3000 to 0.3500

Single or Double Sided Insert

Single

Cutter Series Compatibility

MH20

Length Range (Decimal Inch)

0.0000 to 0.3200

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Iso Code

MH20-080425M-M50 1130

Product Overview
Milling Insert: MH20-080425M-M50 1130, 1130, Solid Carbide AlTiCrN Coated
