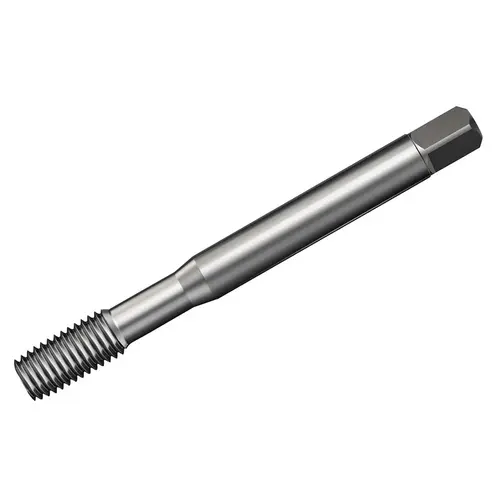

Sandvik Coromant 8252224 Thread Forming Tap: Metric, 6HX Class of Fit, Semi-Bottoming, Carbide, TiCN Coated

Item #: 8252224 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$496.81

/each
SAVE UP TO 49.68
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Solid Carbide

Application

Blind Hole Threading

Overall Length (mm)

80.00

Trade Name

CoroTap 400

Thread Direction

Right Hand

Series

T400-XM100DA

Thread Length (mm)

19.00

Thread Size (mm)

M6x1

Thread Standard

Metric

Chamfer

Modified Bottoming

Class Of Fit

6HX

Coating/Finish

TiCN

Coolant Through

No

Material Grade

A115

Overall Length (Decimal Inch)

3.1496

Shank Diameter (Decimal Inch)

0.2362

Shank Diameter (mm)

6.00

Square Size (Decimal Inch)

0.1929

Square Size (mm)

4.90

Tapping Depth (mm)

30.00

Thread Length (Decimal Inch)

0.7480

UNSPSC Code

23241600

Vendor Drop Ship

N

Chamfered Threads

2-3P

Material Application Code

P

Tapping Depth (Decimal Inch)

1.1811

Oil Grooves

5

Product Overview
Thread Forming Tap: Metric, 6HX Class of Fit, Semi-Bottoming, Carbide, TiCN Coated 19 mm Thread Length, 80 mm OAL, Series CoroTap 400
