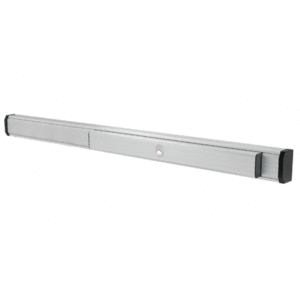

Jackson 311285CR4628 Satin Aluminum 48" 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device with Cylinder Dogging
Item #: 311285CR4628 by Jackson
In Stock $303.71 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Sleek, Contemporary Style
- Suitable for Use with Narrow, Medium and Wide Stile Doors
- UL Listed for Panic Exit Hardware
Size
48"
Brand
Jackson
Finish
Aluminum
Handed
Right
Door Height
84
Certification
ANSI/BHMA 156.3
Finish/Color
Aluminum
Panic Bar Width Net
46.5
Push Pad Width
24
Material - Mechanical Components
Stainless and Hardened Plated Steel
Recommended Door Type
Aluminum Narrow,Medium,Wide Stile And Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Tall Door Extention Rods
301347301348
Material - Housing
Aluminum
Panic Bar Base Height (Inches)
3-3/16
Panic Type
Concealed Vertical Rods
Replacement Parts
DC7205SCKDSC,DC7205SCKASC,1CHSA,1C01,302630628,302861,30821J628
Material - End Cap
Aluminum
Material - Latch & Strike
Sintered Steel
Panic Bar Projection (Inches)
2-7/8
Panic Dogging
Prepped For Cylinder Dogging
Handing
Right Hand Reverse Bevel (RHR)
Model
1285
Door Thickness
1-3/4
Door Width
48
UL Listed
Yes
Includes
Mounting Hardware
This sleek, contemporary CRL Jackson® Concealed Vertical Rod Panic Exit Device is designed for use in 1-3/4" (44 mm) narrow stile aluminum doors. Also may be used with medium and wide stile aluminum and hollow metal doors. Sized for 48" standard openings, but may be trimmed for narrower conditions. Features trigger action locking release and positive 5/8" (16 mm) top and bottom bolt throw.
.
