CRL's DL1180 Series Cross Bar Panic Exit Devices combine simplicity and durability. This device is a proven product for providing an economical solution to satisfy both security and life safety requirements. Available in both Rim and Concealed Vertical Rod versions, this Exit Device comes with a 42" (1.07 m) length cross bar that can be field cut to fit your exact door size requirements.
STANDARD FEATURES:
DL1180 Series Concealed Vertical Rod Panics
Non-Handed
For Use with Standard 1-3/4" (44 mm) Thick Doors
Rod Length to Fit Standard 84" (2.13 m) Tall Doors
Independent Top and Bottom Bolt Action - 1/2" (13 mm) Bolt Throw
Keyed Entry Requires CRL Cat. No. DL913 Cylinder Mounting Pad When Using Optional CRL DL2170 Series, or other brand, Mortise Cylinders
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

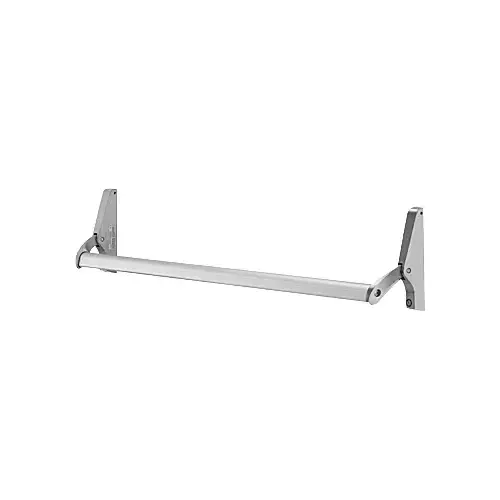

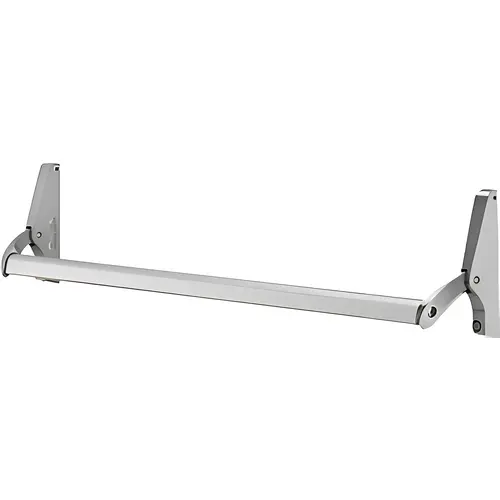

CRL DL1180A Satin Aluminum Concealed Vertical Rod Panic Exit Device
Item #: DL1180A by CR Laurence
22 reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 42" (1.07 m) Crossbar Can Be Cut-to-Size
- Available as Concealed Vertical Rod and Rim Exit Devices
- For Use with Narrow, Medium, and Wide Stile Aluminum Doors or Hollow Metal Doors
- Two Standard Architectural Finishes
Color
Aluminum
Size
42" (1.07 m)
Type
Concealed Vertical Rod
Handing
Non Handed
Finish
Satin Aluminum
Model
DL1180
Door Thickness
1-3/4
UL Listed
Yes
Includes
Mounting Hardware
Door Height
84
Certification
ANSI A156.3 Grade 1
Finish/Color
Satin Aluminum
Panic Bar Width Net
48
Recommended Door Type
Aluminum, Wood, Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Similar
31180547628
Panic Head Base Width
1-1/4
Panic Bar Base Height (Inches)
2
Panic Type
Concealed Vertical Rods (CVR)
Replacement Parts
DL2170SCKDA, DL2070SCKAA, 30821J628
Panic Head Height (Inches)
7-5/16
Panic Bar Projection (Inches)
4-5/8
Panic Dogging
Screw Driver
Material
Aluminum
Minimum Stile Width
1-3/4
Panic Bar Base Height
2
Panic Head Height
7-5/16
Panic Bar Projection
4-5/8
Product Overview
CRL's DL1180 Series Cross Bar Panic Exit Devices combine simplicity and durability. This device is a proven product for providing an economical solution to satisfy both security and life safety requirements. Available in both Rim and Concealed Vertical Rod versions, this Exit Device comes with a 42" (1.07 m) length cross bar that can be field cut to fit your exact door size requirements.
STANDARD FEATURES:
DL1180 Series Concealed Vertical Rod Panics
Non-Handed
For Use with Standard 1-3/4" (44 mm) Thick Doors
Rod Length to Fit Standard 84" (2.13 m) Tall Doors
Independent Top and Bottom Bolt Action - 1/2" (13 mm) Bolt Throw
Keyed Entry Requires CRL Cat. No. DL913 Cylinder Mounting Pad When Using Optional CRL DL2170 Series, or other brand, Mortise Cylinders
