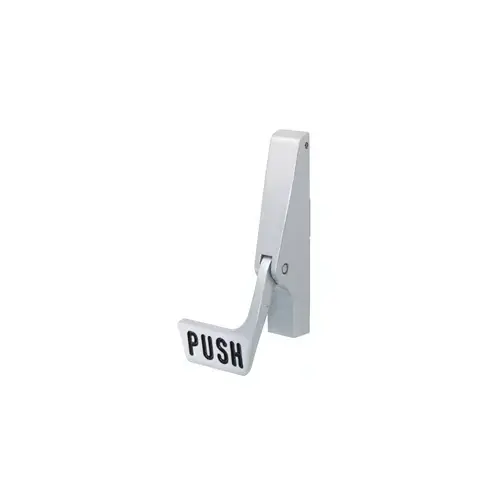

Satin Aluminum 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device

Roll over image to zoom in

Jackson 311085PR7628 Satin Aluminum 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device

Item #: 311085PR7628 by Jackson

See reviews See reviews

In Stock $118.21 /each

SAVE UP TO 11.82

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
  • Concealed Fastening for Added Security
  • Designed for Use With 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors

Shipping Weight

3 lb (1.36kg)

Brand

Jackson

Finish

Aluminum

Handed

Right

Door Height

84

Certification

ANSI/BHMA 156.3

Finish/Color

Aluminum

Material - Mechanical Components

Stainless and Hardened Plated Steel

Paddle Push Width (Inches)

3-3/8

Recommended Door Type

Narrow, Medium, Wide Stile, Aluminum, Hollow Metal

Minimum Stile Width (Inches)

1-3/4

Panic Head Base Width

1-1/4

Material - Housing

Aluminum

Panic Type

Concealed Vertical Rods (Paddle)

Replacement Parts

30115, 301117628, 301117628, 301347, 301348, 30934628, 30320628, DL2170SCKDA, DL2070SCKAA

Material - Latch & Strike

Sintered Steel

Panic Head Height (Inches)

7-5/16

Panic Bar Projection (Inches)

4-5/8

Panic Dogging

Screw Driver

Handing

Right Hand Reverse Bevel (RHR)

Model

1085 Paddle

Door Thickness

1-3/4

UL Listed

Yes

Includes

Mounting Hardware

Application

Narrow, Medium and Wide Stile Doors

Hand

Right Hand Reverse

Function

Exit Only

Device Length

48 Inch (4 Foot)

Stile

Narrow, Medium or Wide

Fire Rated

No

Finish Description

Satin Aluminum

Device Type

Concealed Vertical Rod Device

Dogging Options

Hex Key Dogging

ADA Compliant

No

Finish Family

Aluminum

Standards

ANSI A156.3; UL305 Listed

Device Rating

Panic Exit Hardware

For Door Height

7 Foot

For Door Thickness

1-3/4 Inch

Function Family

Exit Only Device

Features

Nylon Sleeves and Rollers Insulated Wear Points

Product Type

Exit Device

Door Material

Aluminum; Hollow Metal

Manufacturer Parent

CRH

Sub-Series

EDT_Concealed_Ver_Rod_Devices_CRL_Jackson_3


CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Paddle Device is the perfect solution when considering a reliable maintenance free device.
SPECIFICATIONS:
  • Contoured Field Sizeable 48" (1.22 m) Long Crossbar
  • Dual Dogging Feature – By Outside Cylinder - By Dogging Pins on Panic Housing
  • Wear Points Insulated by Nylon Sleeves and Rollers
    1085 Concealed Vertical Rod Device
  • Standard Height 84" (2.13 m)
  • Requires Mortise Cylinder and No. 30821J
    Mounting Pad for Keyed Entry
    MATERIALS:
  • Body and Arms: High Tensile Strength Aluminum
  • Mechanical Components: Stainless and Hardened Plated Steel
  • Latch and Strikes: Sintered Steel

    .
