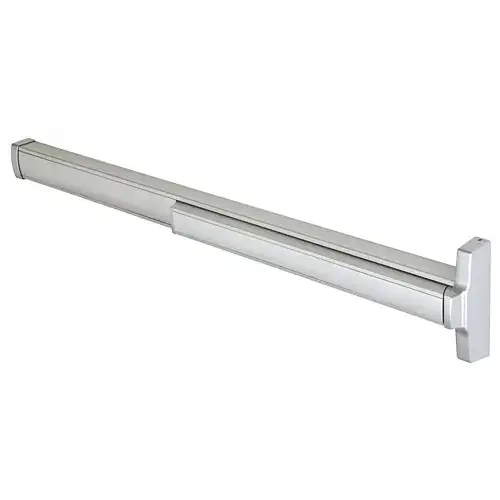

Satin Aluminum Model 2086IE Electric Latch Retraction with Impact Kit Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 36" to 48" Door

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Jackson 3120861ER4628 Satin Aluminum Model 2086IE Electric Latch Retraction with Impact Kit Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 36" to 48" Door

Item #: 3120861ER4628 by Jackson

Item Discontinued!
See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Impact Kit Included with This Device
  • Motorized Latch Retraction
  • Remote Access Control Via Card Reader, Key Pad, Etc.
  • For Use with Narrow, Medium, and Wide Stile Aluminum Doors
  • Dual Point Hex Bolt Latching
  • Fail-Secure Operation
  • Can Be Cut to Size

Brand

Jackson

Handing

Right Hand-Reverse Bevel

Size

48" (1.22 m)

Finish

Satin Aluminum

CRL Jackson® Model 2086IE Electric Latch Retraction With Impact Kit Concealed Vertical Rod Panic Exit Devices are UL Listed, and manufactured in the Jackson® tradition of high quality and durability. This device with the Impact Kit has been used in a number of OEM Certified Impact Systems. Suitable for use with narrow, medium, and wide stile aluminum doors, these devices are handed, not reversible, and feature dual point hex bolt latching, fail-secure operation, remote locking and unlocking capability (for use with card readers, key pads etc.), motorized* operated latch retraction, and "Soft Touch" smooth quiet action push pad. They are available in dark bronze and satin aluminum anodized finishes. Devices will fit doors 36" to 48" (914 to 1219 mm) wide. For doors over 84" (2.13 m) tall order lightweight aluminum Top Rod Extender #301347A for 12" (305 mm) or #301348A for 24" (610 mm). Keyed entry may be provided by ordering and installing a standard 1" (25 mm) Mortise Cylinder such as #DL2170SCKDDU with AR MS type cam, along with Cylinder Mounting Pad #30821J313. Keyed access is also available with Jackson® Model 8500LV Outside Lever Trim #8500LV02313.
SPECIFICATIONS:
  • Ships Standard for 48" (1.22 m) Wide Door
  • Field Sizeable for Use Down to 36" (914 mm) Wide Doors
  • Wear Points Insulated by Nylon Sleeves and Rollers
  • Adjusts for Brief or Extended Unlock Mode
  • 24V DC Input
  • * PRODUCED AFTER 8/15/2016: #301420 Power Supply Recommended.
  • * PRODUCED BEFORE 8/15/2016: Solenoid Driven - Requires 10 Amp Inrush Power Supply; Jackson® #302616 Power Supply Recommended
    ROD DEVICES:
  • Positive Locking, Spring Loaded Top Latch
  • Standard Height 84" (2.13 m)
  • Requires Mortise Cylinder and #30821J Mounting Pad for Keyed Entry
  • Impact-Top Bolt Series Includes Aluminum Bolts and Guides
    MATERIALS:
  • Body and Push Pad: Extruded Aluminum
  • Mechanical Components: Stainless and Hardened Plated Steel
  • Latch and Strikes: Sintered Steel
    • Important Notes: Solenoid Operated Devices produced prior to 8/15/16 are not to be used with compression-sealed hurricane resistant door applications. Motorized Devices produced after 8/15/16 can be used with compression-sealed hurricane resistant door applications.
