The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. It allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Oil Dynamic Hinges will support a 5/16", 3/8" or 1/2" (8, 10 or 12 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, with positive stops at 0 and 90 , giving you even more design freedom.
The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. It has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16", 3/8" and 1/2" (8, 10 and 12 mm)
Construction: Aluminum
Hinge Swings: 90 Inwards
Closing Type: Automatic Closing From 0 to 80
Special Feature: Holds Open at 90 ; Adjustable Closing Speed
Cut-Out Required
Includes: Snap-In Molded Gaskets for 3/8" (10 mm) and 1/2" (12 mm) Glass; Hex Screws Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)
NOTE: Do not use more than two hinges on one door. Not suitable for exterior and outdoor use.
Product Warning:
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

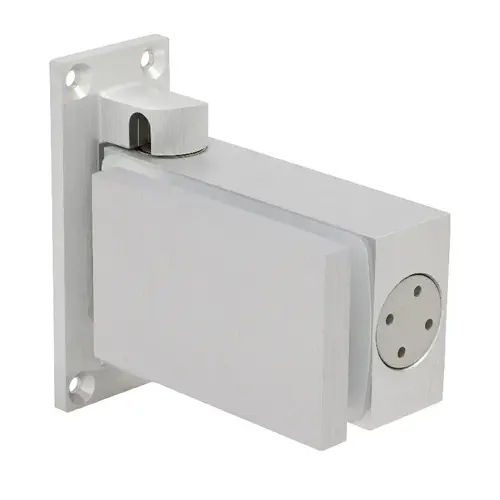

CRL H8060BTSA Satin Anodised Oil Dynamic Hydraulic 'All-Glass' One Way Door Hinge
Item #: H8060BTSA by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For Self-Closing Glass Doors 5/16", 3/8" and 1/2" (8, 10 and 12 mm) Thick
- Designed for Use on Interior Doors in Humid Conditions and High Temperatures
- Aluminum Body in Your Choice of Three Finishes
- A Great Alternative to Floor Closers and Patch Fittings
Closing Type
Hold Open
Finish
Satin Anodized
Mounting Type
Wall Mount
Material
Aluminum
Hold Open
Yes
Glazing Thickness
5/16 To 9/16
Maximum Door Width
39
Swing
Yes
Adjustable Closing Speed
Yes
Self-Closing
Yes
Finish/Color
Satin Anodized
Series
Vernon
Maximum Door Weight - 2 Hinges
220 Lbs.
Maximum Door Weight - 2 Hinges
220 lbs. (99.8 kg)
Product Overview
This CRL Oil Dynamic One Way Swinging Wall Mount Hinge is ideal for hermetic closing. Swings one way a full 90 , with stops at 0 and 90 . Closing speed can be adjusted. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 220 lbs. (100 kg). Designed for use on interior doors in damp and humid environments and high temperatures up to 212 F (100 C), such as steam rooms, Turkish baths, and shower doors.
The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. It allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Oil Dynamic Hinges will support a 5/16", 3/8" or 1/2" (8, 10 or 12 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, with positive stops at 0 and 90 , giving you even more design freedom.
The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. It has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
NOTE: Do not use more than two hinges on one door. Not suitable for exterior and outdoor use.
