This CRL Glass Mounted Curved Pull Handle is available in several finishes.
SPECIFICATIONS
Includes:
One Set CC10X10 Pull Handles (back-to-back mounting)
Two Each Through Bolts for Glass Mounting
Four Each 1-1/4" (32 mm) Diameter Matching Metal Finish Washers and Gaskets
For Use With:
3/8" (10 mm) Glass
1/2" (12 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel or Brass Tubing
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes 10" (254 mm) Center-to-Center
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

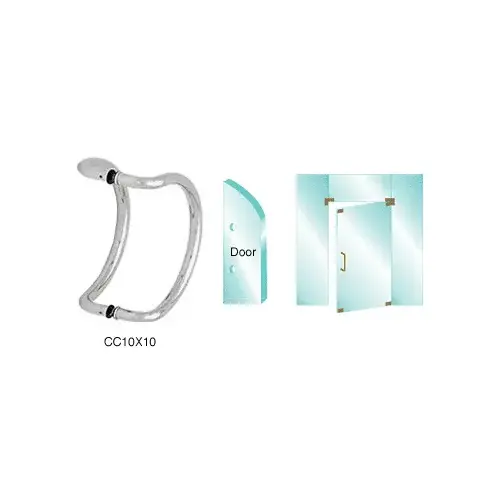

CRL CC10X10SA Satin Anodized 10" Glass Mounted Curved Pull Handle
Item #: CC10X10SA by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 1" Diameter Stainless Steel or Brass Tubing
- For Use With: 3/8" and 1/2" Glass
Shipping Weight
2 lb (907g)
Finish
Satin Anodized
Center to Center
10
Glazing Thickness
3/8, 1/2
Finish/Color
Satin Anodized
Style Washers
Yes
Mounting Hole Diameter (Inches)
5/8
Style Washer Diameter (Inches)
1-1/4
Mounting Type
Back-To-Back
Diameter
1"
Mounting Center To Center (Inches)
10
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Center To Center
10 in. (254 mm)
Style Washer Diameter
1-1/4 in. (32 mm)
Product Overview
This CRL Glass Mounted Curved Pull Handle is available in several finishes.
SPECIFICATIONS
Includes:
For Use With:
Construction:
Glass Fabrication Required:
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
