Satin Anodized 12V DC Thru-Glass Two-Way Digital Electronic Communicator - Level 3

Roll over image to zoom in

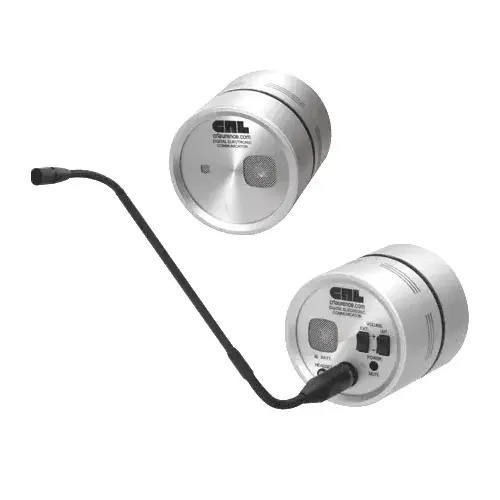

CRL 9B3DSA Satin Anodized 12V DC Thru-Glass Two-Way Digital Electronic Communicator - Level 3

Item #: 9B3DSA by CR Laurence

See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Bullet Resistant Models Available Up to Level 3
  • Clear, Reliable, Hands-Free Two-Way Conversation
  • DC Units Include Battery and Charger
  • Extension Kit for Barriers Up to 2-1/2" (64 mm) Thick (Included with Bullet Resistant Models)
  • Standard Unit Fits Barriers From 1/4" to 1" (6 to 25 mm) Thick

Finish

Satin Anodized

Shipping Weight

5 lb (2.27kg)

Bullet Resistance

Level 3

Powered By

DC Rechargeable Battery

CRL Thru-Glass Two-Way Digital Electronic Communicators contain the latest advancements in electronic sound transmission devices. Clear, distortion free two-way conversations can take place through secure barriers as the unit senses sound levels and automatically increases volume when speech on interior side (clerk's side) begins. Easy-to-operate multi-function controls on the clerk's side turn the Communicator on and off, set to mute, and adjust the volume.
Different headset styles and other accessories are available. Select either the AC Plug-In Transformer Model, or the DC Rechargeable Battery Powered Model. Units are available as standard or bullet resistant models in satin or black anodized finishes.
CRL Digital Communicators are easy-to-install. The absence of exterior screws or fasteners make them tamper-resistant. All units are supplied complete with 18" Boom Microphone, power supply, wiring, instructions, and mounting hardware to fit 1/4" to 1" (6 to 25 mm) thick barrier glass.
For additional information, contact our Technical Sales Department for further assistance.
NOTE: Can fit up to 2-1/2" (64 mm) thick barrier glass when using the optional thick glass extension screw kit Cat. No. 9EXT. Bullet resistant models include the extension kit. AC Models include wiring conduits.
SPECIFICATIONS:
Materials: 3/16" (4.75 mm) Thick Billet Aluminum Case
Finishes: Satin Anodized, Black Anodized
Dimensions:
Interior: 4-1/2" (114 mm) Diameter x 2-1/2" (63 mm) Deep
Exterior: 4-1/2" (114 mm) Diameter x 1-3/4" (44.5 mm) Deep
Barrier/Glazing Range: 1/4" to 1" (6 to 25 mm) with Standard Installation Kit; Up to 2-1/2" (64 mm) Using Extension Screw Kit (included with bullet resistant models)
Power Requirement: 9 VDC, 1.2 AMP Nominal
Power Supply/Charger: Input 100-240 VAC 50/60 Hz 0.35 AMP
Controls: Inside and Outside Volume; Mute; Power
Battery Type: 6V 2200mAH (2.2 Amp Hours) NIMH
100% Duty Time – Per Charge: >12 Hours Per Charge
Charge Time: 3 Hours; Can Be Used While Charging
Glass Fabrication Required: Single 2-1/2" to 3-1/2" (64 to 89 mm) Hole. Adapters available for larger holes
Frequency Response: 50Hz to 17kHz
Talk Mode: Half-Duplex
Bullet Resistant Option: Level 3
