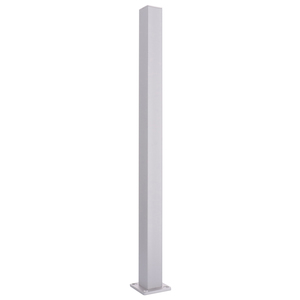

CRL D990A18E Satin Anodized 18" End Design Series Partition Post

  • Stock Post Sizes, RED-E to Ship
  • Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
  • Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
  • Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
  • Top Cap and Mounting Base Included
  • Use Monolithic Tempered Glass
See Full Product Description
SALE

$47.03 /each

Qty

In stock
Quick Shipping

Usually ships in 1 business day*

SALE
+
In stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • Stock Post Sizes, RED-E to Ship
  • Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
  • Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
  • Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
  • Top Cap and Mounting Base Included
  • Use Monolithic Tempered Glass

  • Product Description
  • Technical Details 4
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Length

18 in (457 mm)

Minimum Order

1 Each

Shipping Weight

1.5 lb (680g)

Finish

Satin Anodized

  • Stock Post Sizes, RED-E to Ship
  • Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
  • Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
  • Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
  • Top Cap and Mounting Base Included
  • Use Monolithic Tempered Glass
CRL Satin Anodized 18" End Design Series Partition Post comes in five standard configurations with different stylish finishes. Each unit is supplied with one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting. CRL Satin Anodized 18" End Design Series Partition Post has a sleek design and is one of the popular product that is being used in banks, offices, and restaurants for over the years. It has aluminum tubing with full length, channels for 1/4" (6 mm) glass and can be customized in various sizes 135 degree posts. Technical specifications: Color: Satin Anodized Length: 18 in (457 mm) These fully assembled design series posts measure 1-1/8" (28.6 mm) square. Post mounting base plates measure 2" (50.8 mm) square. Glazing channels measure full length and rise 15/32" (11.8 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel. DS 06/28/2016

From Manufacturer

CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.
These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components. Instructions and requirements, parts page. Important Notes: The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
