- Use Monolithic Tempered Glass
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Stock Post Sizes, RED-E to Ship
- Top Cap and Mounting Base Included
2 Lb (907g)
24 in (609.6 mm)
2 x 2 in sq (50 X 50 mm sq)
Glazing Attachment Type

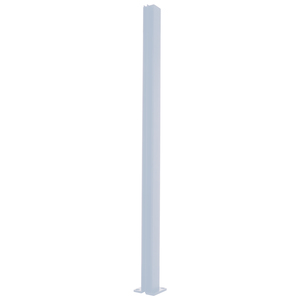

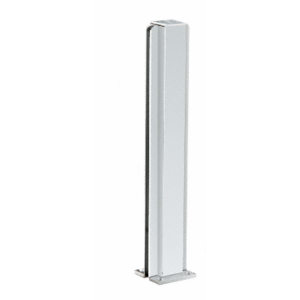

CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.
These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components. Instructions and requirements, parts page.
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
