CRL EDW48360XA Satin Anodized 48" x 36" All Electric Fully Automatic Deluxe Sliding Service Window OX (clerk side) No Bottom Track

1 reviews

$5,110.87 /each

Item #: EDW48360XA by CR Laurence

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

CRL EDW48360XA Satin Anodized 48" x 36" All Electric Fully Automatic Deluxe Sliding Service Window OX (clerk side) No Bottom Track

1 1 reviews

$5,110.87 /each

Item #: EDW48360XA by CR Laurence

Special Order*

Usually ships in 1-2 weeks

QTY
+
+ Add to Wishlist
Buy In Bulk

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

  • 24V DC-Electric Motor with UL/CSA Approved Class 2 Transformer
  • Electro/Mechanical Operation (Requires 120V AC Only)
  • Microprocessor Logic Control Panel Assembly

Height

36" (914 mm)

Configuration

OX from Clerkside

Width

48" (1.22 m)

Panels

O = Fixed, X = Sliding

Finish

Satin Anodized

The CRL All Electric Fully Automatic Deluxe Sliding Window is a single sliding service window perfect for drive-thru applications such as fast food restaurants, pharmacies, banks, or anywhere a high quality automatic service window is required.
Window includes aluminum half bottom track, provides clear service opening (no track under slider).

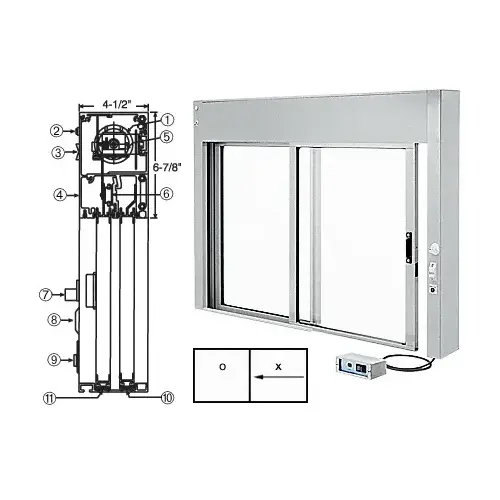

Standard Features (refer to above image on left)
1. 24V DC-Electric Motor
2. Master Push-to-Reset Fuse
3. Master Power On/Off Switch
4. Removable Access Panel
5. Microprocessor Logic Control Module
6. Heavy-Duty Anti-Lift Ball Bearing Carrier
7. Thumbturn Hook Throw Deadlock
8. Locked/Unlocked Indicator
9. Push Button Manual Open/Close Switch
10. Vinyl Track (No Metal-to-Metal Rubbing)
11. Poly-Pile Weatherstripping with Fin
Safety Features:
  • 24V DC System
  • UL/CSA Approved Class 2 Transformer
  • Auto Reverse Feature if Window is Blocked
  • Soft Close Feature in "Pinch Zone"
  • Mechanical Positive Slip Clutch.
    Specifications:
  • Materials: Aluminum Extrusions, Stainless Steel Control Panel Assembly
  • Glazing: 1/4" (6 mm) Clear Tempered Glass
  • Controls: Infrared Sensing Device and Automatic/Off/Manual Switch Included in 7-3/4" Wide x 2-3/16" High x 3-9/16" Deep (197 x 56 x 90 mm) Stainless Steel Housing (Mounted by Installer). Jamb Mounted Push Button Switch for Manual Operation. Header Mounted Master Power Switch and Push-to-Reset Master Fuse.
  • Power Requirements: Hardwire to 120V AC Power Source.
  • Rough Opening: Add 1/2" (12.7 mm) to Width, 1/4" (6.4 mm) to Height
  • Control Panel Assembly Contains an Infrared Sensing Device and an Automatic/Off/Manual Switch Enclosed in a Stainless Steel Housing, Not Attached to Window, Mounted Separately by Installer.
