Satin Anodized 6-Panel Bipart Overhead Track Half Bi-Fold Door Configuration

Roll over image to zoom in

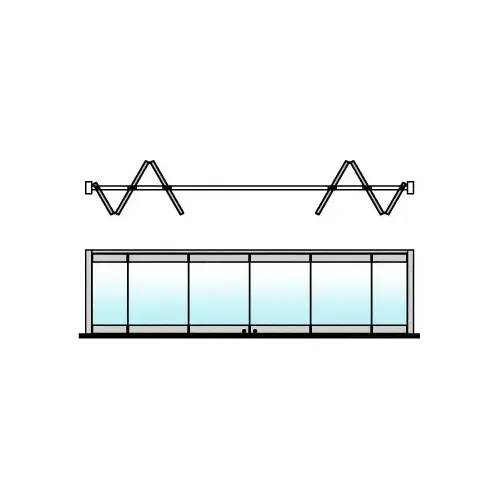

CRL 0TC6BPSA Satin Anodized 6-Panel Bipart Overhead Track Half Bi-Fold Door Configuration

Item #: 0TC6BPSA by CR Laurence

See reviewsSee reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Provides a Flush Bottom Surface
  • Use Monolithic Tempered Glass
  • Panels Hung From Mid-Point, Maximizing Panel Width
  • With 4" (102 mm) Square DR4S Series Door Rails

Panel

6-Panel

Type

Half Bi-Fold Door Configuration

Finish

Satin Anodized

Glazing Thickness

3/8, 1/2

Maximum panel width

41

Finish/Color

Satin Anodized

Series

OT Overhead Track Bi-Fold

Door Bottom Rail (3/8 Inch Glass)

DR4SSA38C

Door Top Rail (1/2 Inch Glass)

DR4SSA12C

Door Bottom Rail (1/2 Inch Glass)

DR4SSA12C

Door Top Rail (3/8 Inch Glass)

DR4SSA38C

Configuration

Single Track Half Leaf 3 Panels Left 3 Panels Right

Product Overview

CRL Overhead Track Half Panel Bi-Fold Door Systems are available in four configurations, with a maximum of three panels on each side of the opening. The end panels act like normal center pivoting doors and connect to the first hanging panel using special hinged end caps. The hanging panels are joined in the same manner, and are hung from a single Cat. No. 0TCA Carriage Assembly at the midpoint of the panel's width.
Use of our Cat. No. 0TBR Series Guide Channel supplied with each order is highly recommended to prevent the panels from dragging during operation. Maximum panel weight not to exceed 170 lbs. (77 kg). Maximum panel width is 41" (1.04 m). Minimum panel width is 15" (381 mm).
NOTE: Available with 4" (102 mm) square rails, and by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
