CRL Roton Hinges are made of high strength aluminum with a full-length rolling gear profile to align doors perfectly from top to bottom. Special self-lubricating polyacetal load bearing blocks deliver smooth, almost floating operation on even the heaviest doors. Hinges are completely secure because all mounting hardware is hidden. CRL Roton Hinges are easy-to-install, and come complete with instructions and all necessary mounting hardware. Replacement Screw Packs are also available.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

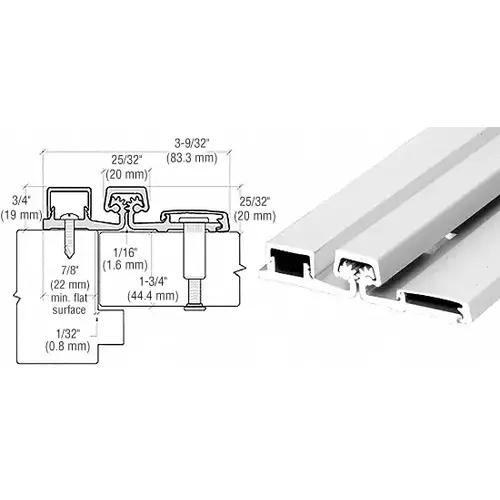

CRL 157HD83A Satin Anodized 83" Roton 157HD Series Heavy-Duty Full Surface Frame Face Continuous Hinge
Item #: 157HD83A by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Straight Hole Pattern
- Available in Standard or Heavy-Duty Models
- Heavy-Duty Hinges for Doors Weighing Up to 600 Lbs. (272 kg)
- Specified Everywhere Because of Their Long Service Life
- Standard Duty Hinges for Doors Weighing Up to 200 Lbs. (90 kg)
Length
83" (2.11 m)
Shipping Weight
11 lb (4.99kg)
Finish
Satin Anodized
Material
Aluminum
Hinge Length
83
Includes
Installations Screws
Brand
Roton
Door Weight
600
Finish/Color
Satin Anodized
Series
157HD
Replacement Screw Pack
64611SA
Width
3-9/32
Maximum Door Weight
600
Product Overview
CRL Roton Hinges are made of high strength aluminum with a full-length rolling gear profile to align doors perfectly from top to bottom. Special self-lubricating polyacetal load bearing blocks deliver smooth, almost floating operation on even the heaviest doors. Hinges are completely secure because all mounting hardware is hidden. CRL Roton Hinges are easy-to-install, and come complete with instructions and all necessary mounting hardware. Replacement Screw Packs are also available.
