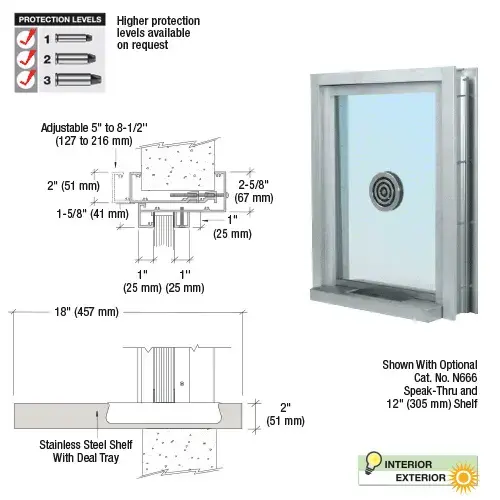

CRL Exterior Glazed Clamp-On Frame Windows have a Stainless Steel Shelf with Non-Ricochet Bullet Resistant Deal Tray for passing currency, credit cards, tickets, or small articles. The extruded aluminum frame is designed for installation into walls 5" to 8-1/2" (127 to 216 mm) thick. The shelf is typically made in depths of 12" or 18" (305 or 457 mm). The added depth of the 18" (457 mm) shelf provides a convenient writing surface on the customer's side. Tightening screws on the interior side of the frame clamps the window securely in the opening. Customer specifies overall width and height when ordering.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard.
Finishes: Frame - Satin Anodized or Bronze Anodized; Powder Paint Colors or Custom KYNAR Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection, Weather Flap/Drain Hole Options Available
Instructions Included
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL C0EW18A Satin Anodized Aluminum Clamp-On Frame Exterior Glazed Exchange Window with 18" Shelf and Deal Tray
Item #: C0EW18A by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Clamp-On Frame with Stainless Steel Shelf and Built-in Non-Ricochet Bullet Resistant Deal Tray
- Drawings and Specifications are Available Online
Customer to Specify
Customer to Specify
Shelf Size
18" (457 mm)
Finish
Satin Anodized
Shelf Depth (Inches)
18
Glazed
Yes
Deal Tray Depth (Inches)
8 1/4
Finish - Shelf & Deal Tray
Brushed Stainless Steel
Deal Tray Width (Inches)
11
Deal Tray Height (Inches)
1-9/16
Finish/Color
Satin Anodized
Glazing Type
Specify
Glazing Thickness
1/4 To 1-3/8
Size
Specify
Shelf Width
Overall Frame Width Less 4
Wall Thickness
5 To 8 1/2
Shelf Thickness
2
Deal Tray Depth
8-1/4 in. (209.6 mm)
Deal Tray Width
11 in. (279.4 mm)
Deal Tray Height
1-9/16 in. (39.7 mm)
Product Overview
CRL Exterior Glazed Clamp-On Frame Windows have a Stainless Steel Shelf with Non-Ricochet Bullet Resistant Deal Tray for passing currency, credit cards, tickets, or small articles. The extruded aluminum frame is designed for installation into walls 5" to 8-1/2" (127 to 216 mm) thick. The shelf is typically made in depths of 12" or 18" (305 or 457 mm). The added depth of the 18" (457 mm) shelf provides a convenient writing surface on the customer's side. Tightening screws on the interior side of the frame clamps the window securely in the opening. Customer specifies overall width and height when ordering.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard.
Finishes: Frame - Satin Anodized or Bronze Anodized; Powder Paint Colors or Custom KYNAR Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection, Weather Flap/Drain Hole Options Available
Instructions Included
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
